computer animations:

of
glaciers:
- Goessnitzkees and Hornkees (Schober Group, Hohe Tauern Range, Austria)
- Pasterze Glacier (Glockner Mountains, Hohe Tauern Range, Austria)

rock glaciers:
- Hochebenkar rock glaciers (Oetztal Alps, Austria)
- Hinteres Langtalkar rock glacier (Schober Group, Hohe Tauern Range, Austria)
- Doesen rock glacier (Hochalmspitze-Ankogel Group, Hohe Tauern Range, Austria)
- Leibnitzkopf rock glacier (Schober Group, Hohe Tauern Range, Austria)
- Tschadinhorn rock glacier (Schober Group, Hohe Tauern Range, Austria)

landslides:
- Blaubach landslide (Krimml, Austria)

© by Viktor Kaufmann, Graz University of Technology, 2017



Goessnitzkees and Hornkees

Goessnitzkees (Hohe Tauern National Park,
                  Austria) Reconstruction and visualization of the retreat of two small cirque glaciers in the Austrian Alps since 1850
[Abstract]
© by Viktor Kaufmann and Reinhard Ploesch, Graz University of Technology, 1999, 2001

 Sequence 1 (video clip, MPEG, 3,6 MB, 19 sec.): Geographical setting of the glaciers (glacial stage of 1997) - round flight
 Sequence 2 (video clip, MPEG, 5,4 MB, 29 sec.): Reconstruction of glacial stages (1983, 1992 and 1997) - round flight
 Sequence 3 (video clip, MPEG, 2,9 MB, 15 sec.): Hornkees (glacial stage of 1997) - approach
 Sequence 4 (video clip, MPEG, 2,9 MB, 15 sec.): Goessnitzkees (glacial stage of 1997) - approach
 Sequence 5 (video clip, MPEG, 6,9 MB, 38 sec.): Computer animation of the glacier retreat  - bird's-eye view
 Sequence 6 (video clip, MPEG, 6,4 MB, 35 sec.): Computer animation of the glacier retreat  - terrestrial view
 (all sequences with sound)

The complete video film (MPEG, 138 MB, 12 min. 36 sec.) can be provided on CD-ROM ( order now ).
Also a video tape is available for sale ( order now ).
Check YouTube for downloading the complete video film.

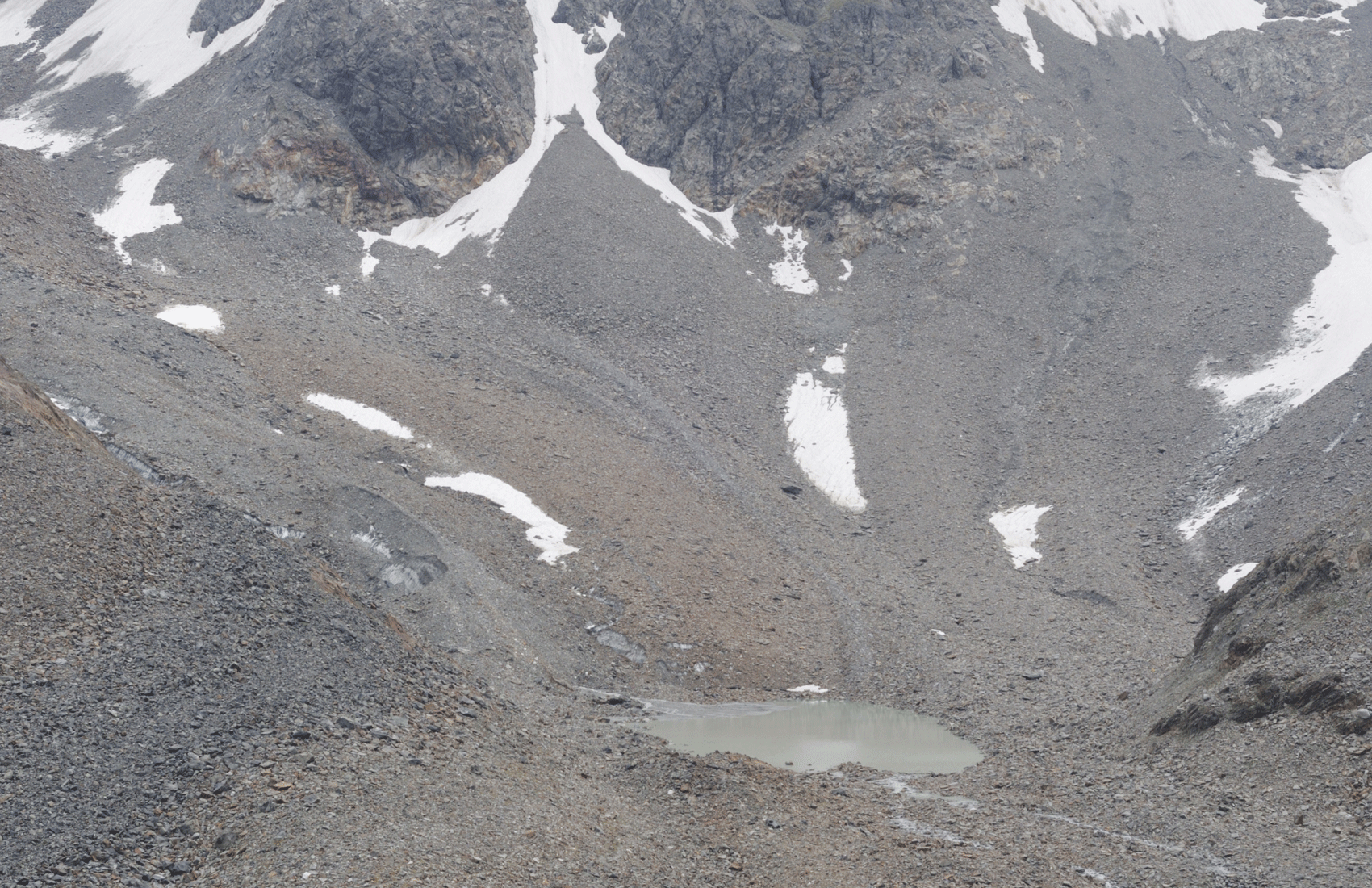

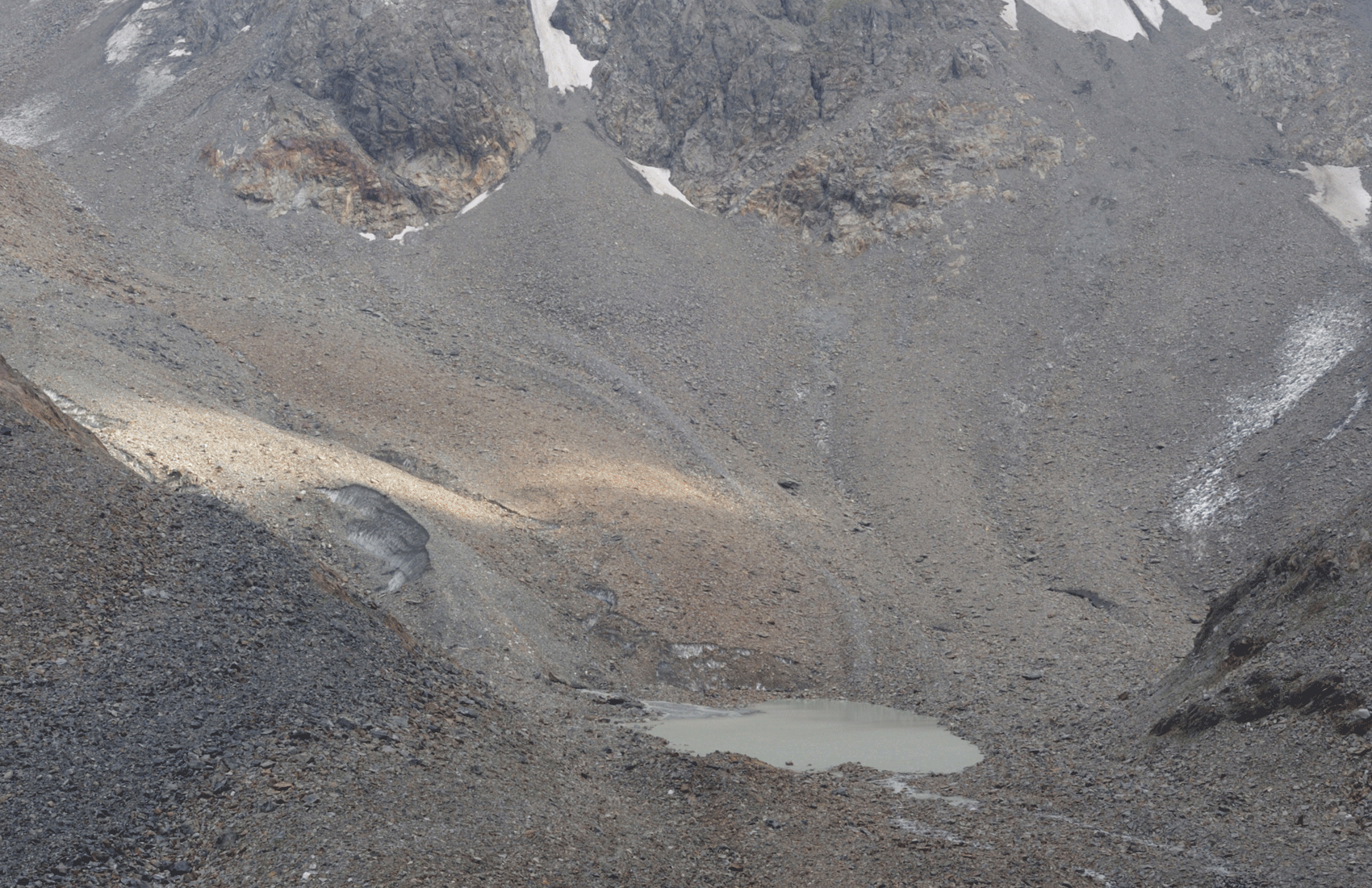

Visualization of surface height change and movement at Goessnitzkees (Goessnitz glacier) (animated GIFs)

  2008 - 2009                                 2009 - 2010                                 2008 - 2009 - 2010
Hochebenkar rock
                  glacier 1986
Terrestrial view of 22.8.2008
Hochebenkar rock
                  glacier 1999
terrestrial view of 22.8.2009
Hochebenkar rock
                  glacier 1999
terrestrial view of 20.8.2010
© by Viktor Kaufmann, Graz University of Technology, 2011

Camera used: Nikon D300, 50mm lens, 4288 x 2848 frame size
Download animated GIFs: 2008-2009, 2009-2010, 2008-2010, 2008-2009-2010

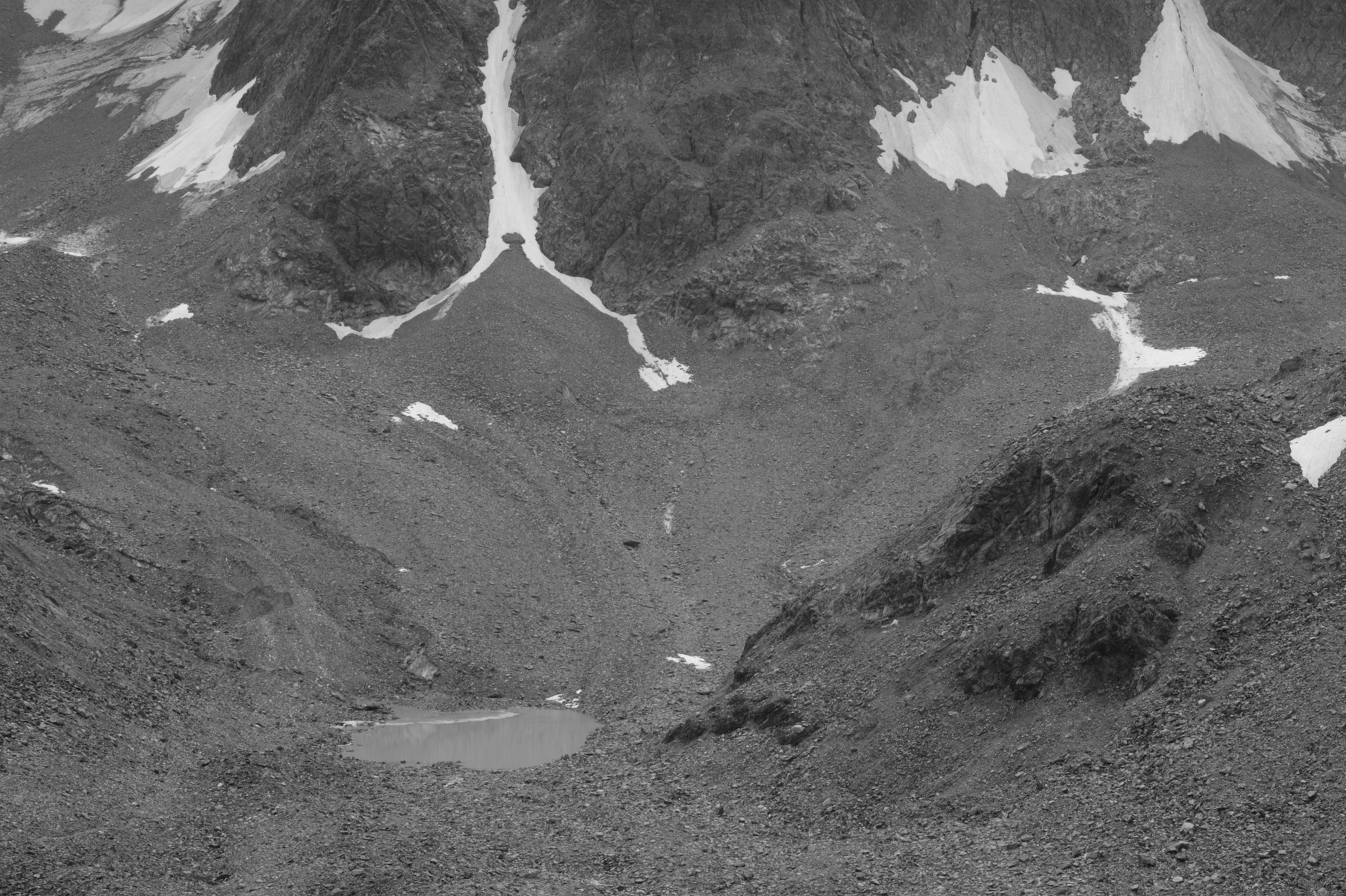

 1988 - 2010                                  1988 - 2010
Hochebenkar rock
                  glacier 1986
Terrestrial view of 7.9.1988
Hochebenkar rock
                  glacier 1999
terrestrial view of 20.8.2010
© by Viktor Kaufmann and Robert Kostka, Graz University of Technology, 2011

Cameras used: (1988) Zeiss TAL phototheodolite & (2010) Nikon D300, 50mm lens
Download animated GIF: 1988-2010

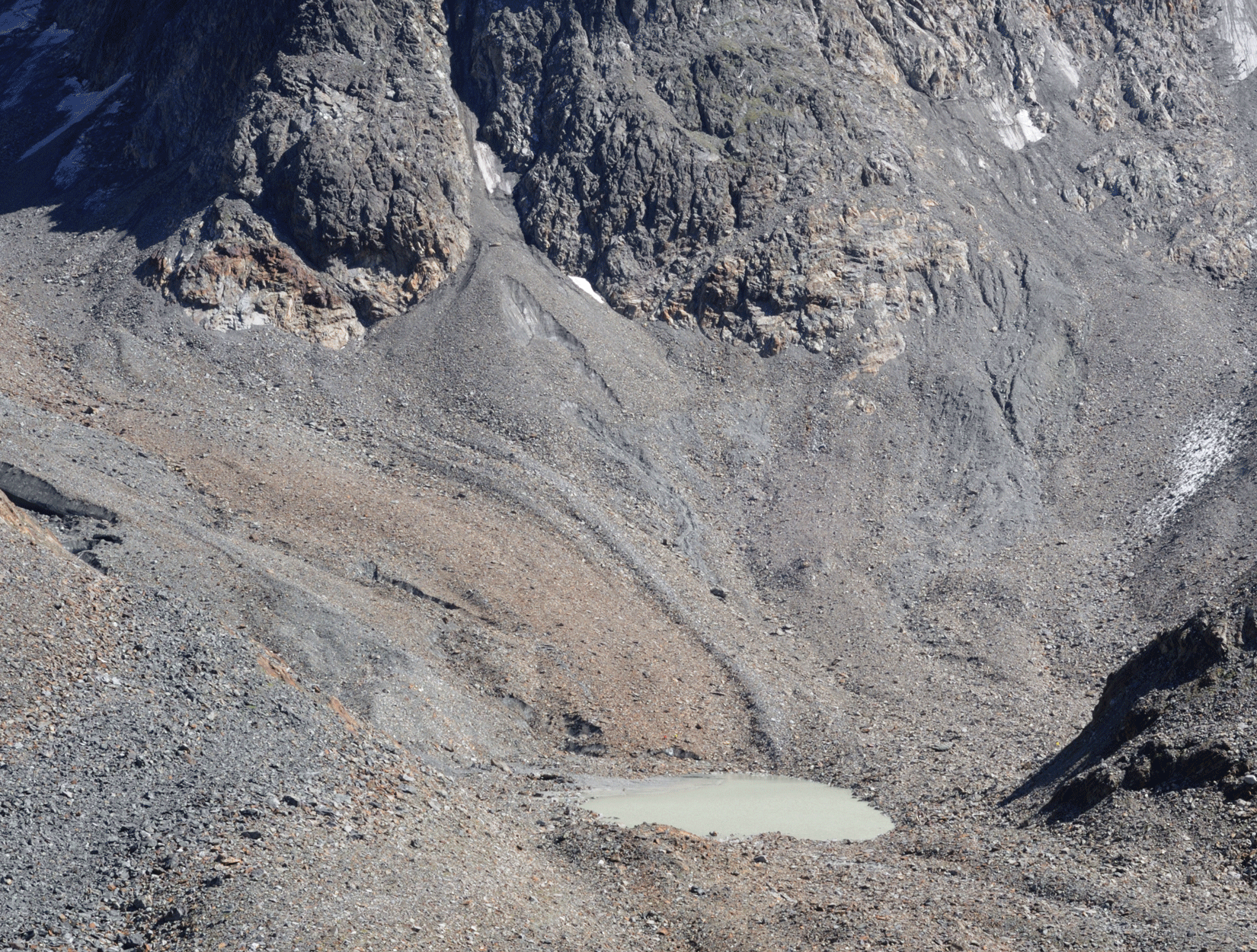

 2012 - 2015                                 2012 - 2015
Gössnitzkees 2012
Terrestrial view of 17.8.2012
Gössnitzkees 2015
terrestrial view of 21.8.2015
© by Viktor Kaufmann, Graz University of Technology, 2016

Camera used: Nikon D300, 50mm lens,  4288 x 2848 frame size
Download animated GIFs: 2012-2015


Hochebenkar rock glaciers

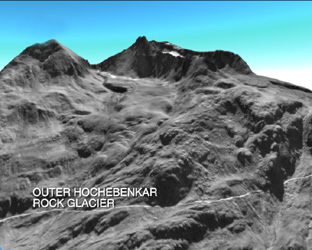

Outer Hochebenkar rock glacier (Austria) Spatio-temporal analysis of the dynamic behaviour of the Hochebenkar rock glaciers (Oetztal Alps, Austria) by means of digital photogrammetric methods
[Abstract]
© by Viktor Kaufmann and Reinhard Ploesch, Graz University of Technology, 1999, 2001

 Sequence 1 (video clip, MPEG, 4280 KB, 23 sec.): Hochebenkar rock glaciers (1997) - round flight
 Sequence 2 (video clip, MPEG, 3878 KB, 21 sec.): Outer Hochebenkar rock glacier (1997) - bird's-eye view
 Sequence 3 (video clip, MPEG, 7359 KB, 40 sec.): Inner Hochebenkar rock glacier (1997) - birds's-eye view
 Sequence 4 (video clip, Quick Time Movie, 515 KB): Hochebenkar rock glaciers (1997)
 (MPEG sequences with sound)

The complete video film (MPEG, 56 MB, 5 min. 06 sec.) can be provided on CD-ROM ( order now ).
Also a video tape is available for sale ( order now ).
Check YouTube for downloading the complete video film.

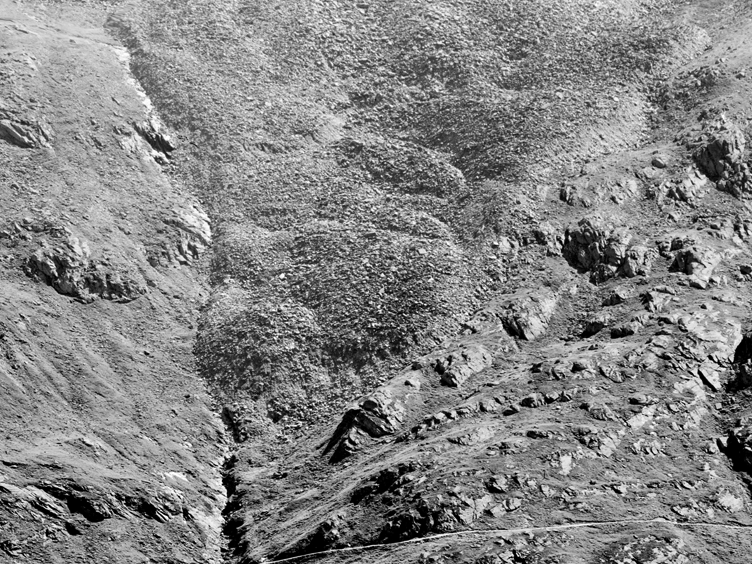

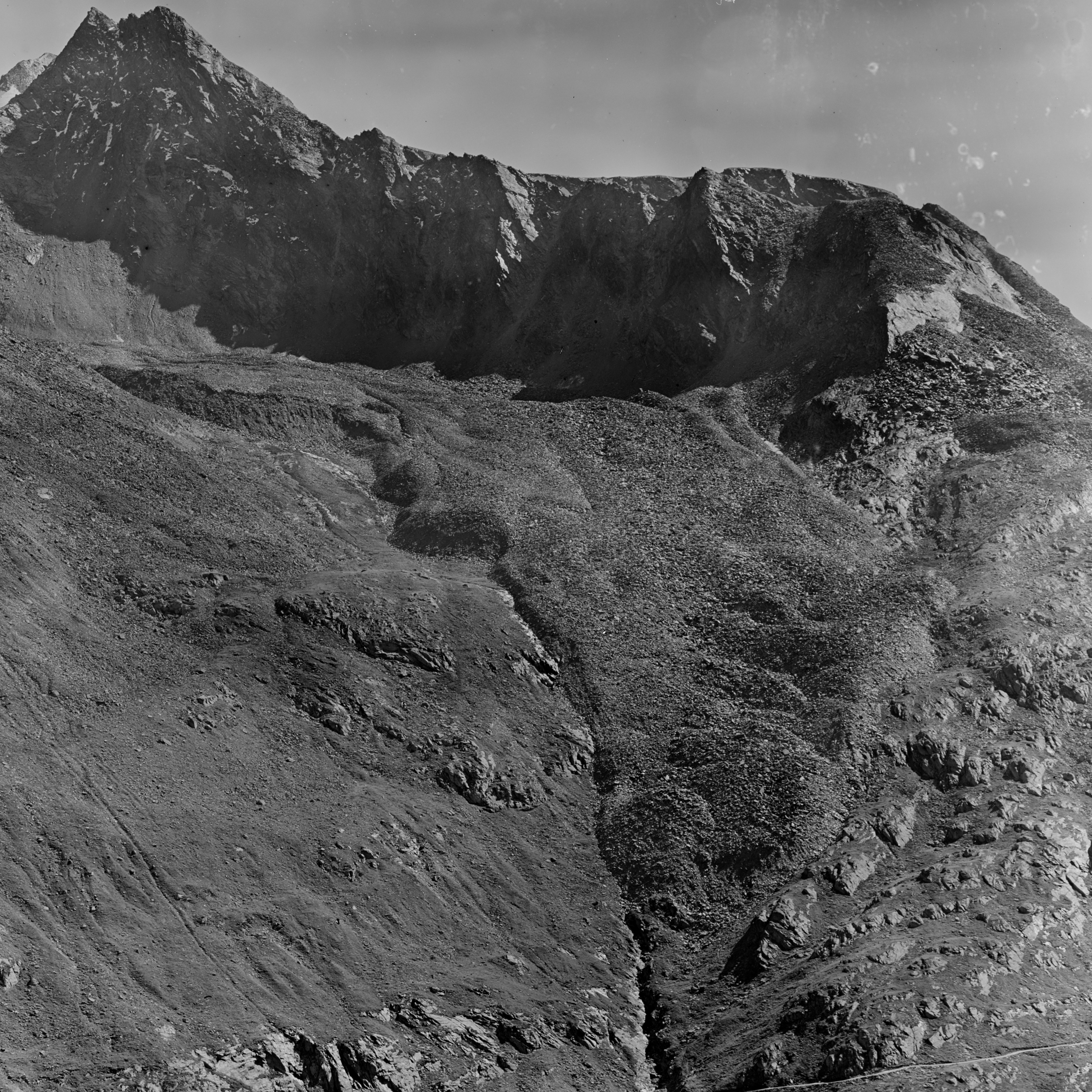

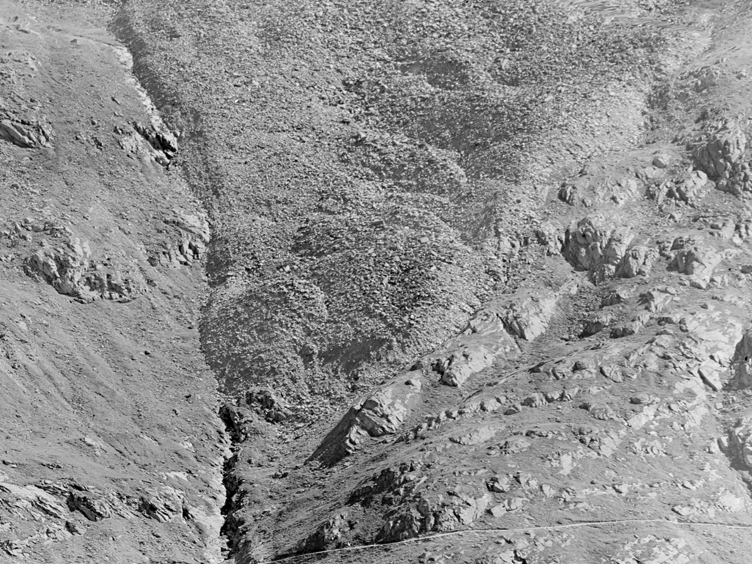

Movement of the tongue of the Outer Hochebenkar rock glacier (animated GIF)

 1986 - 2003                                  1986 - 1999                                 1999 - 2003                                  1986 - 1999 - 2003
Hochebenkar rock
                  glacier 1986
Terrestrial view of 23.9.1986
Hochebenkar rock
                  glacier 1999
terrestrial view of 9.9.1999
Hochebenkar rock
                  glacier 1999
terrestrial view of 19.9.2003
Hochebenkar rock
                  glacier 1999
terrestrial view of 19.9.

© by Richard Ladstädter & Viktor Kaufmann, Graz University of Technology, 2004

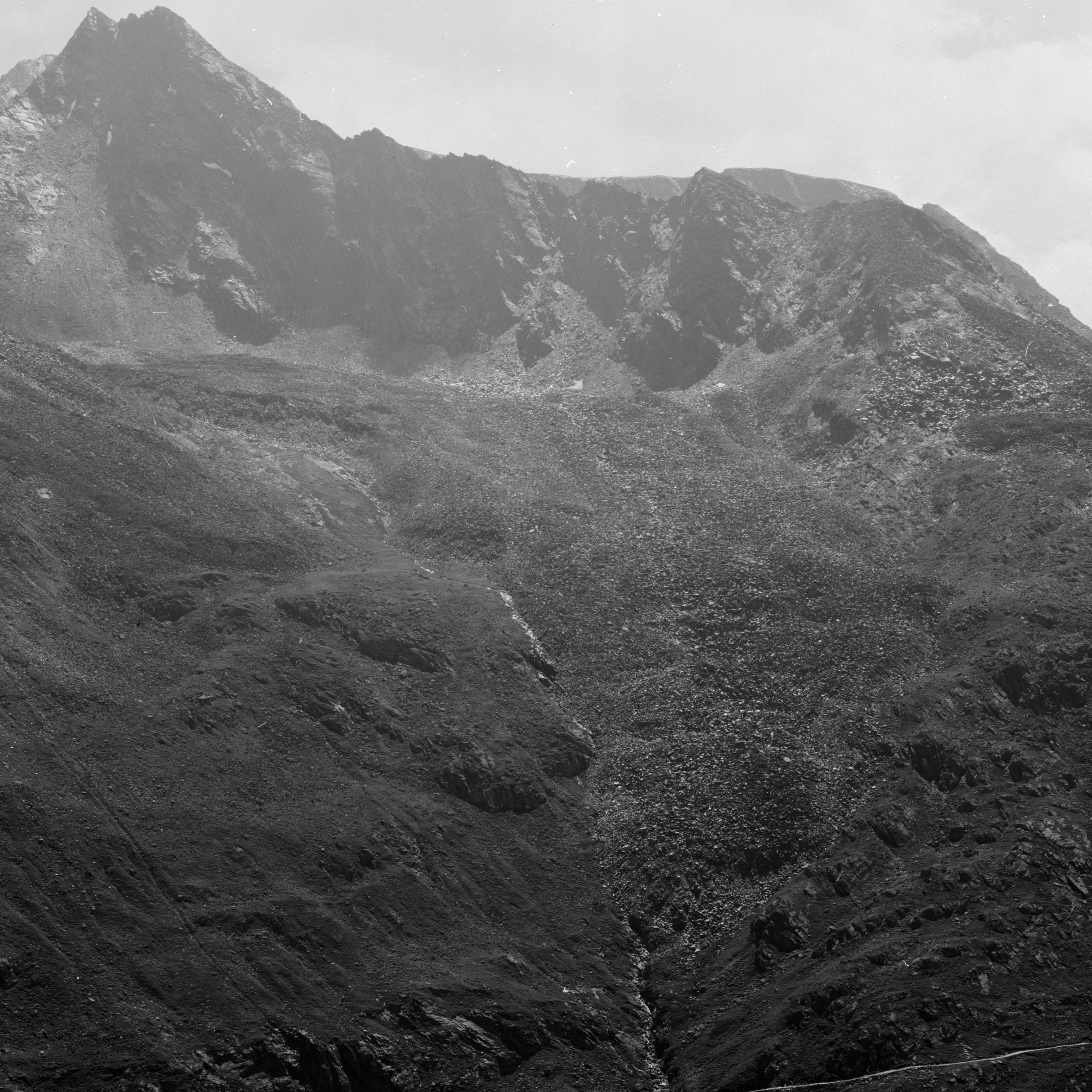

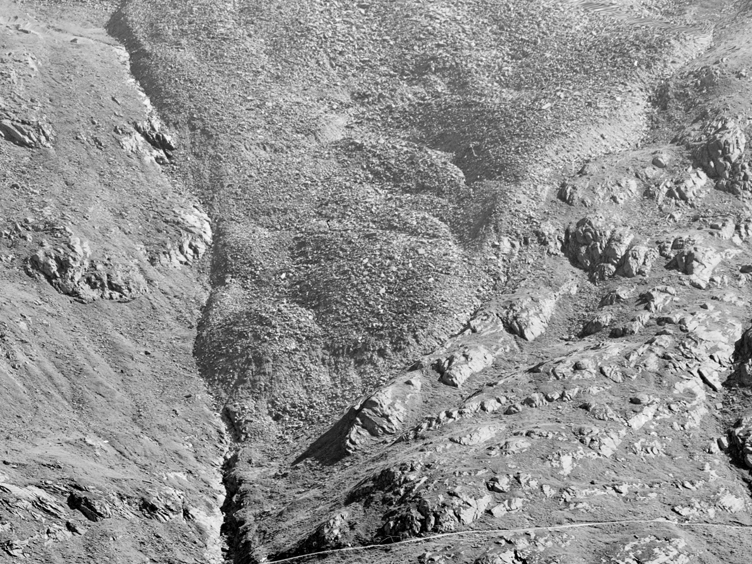

Movement of the Outer Hochebenkar rock glacier (animated GIF)

1986 - 2003  (low resolution)       1999 - 2008 (low resolution)        1986 - 2003  (high resolution)       1999 - 2008 (high) resolution)
Hochebenkar rock glacier
                  1986
Terrestrial view of 23.9.1986
Hochebenkar rock
                  glacier 1999
terrestrial view of 9.9.1999
Hochebenkar rock
                  glacier 1999
terrestrial view of 19.9.2003
Hochebenkar rock
                  glacier 1999
terrestrial view of 10.8.2008
Image registration by means of 2D homography.
© by Viktor Kaufmann, Graz University of Technology, 2011

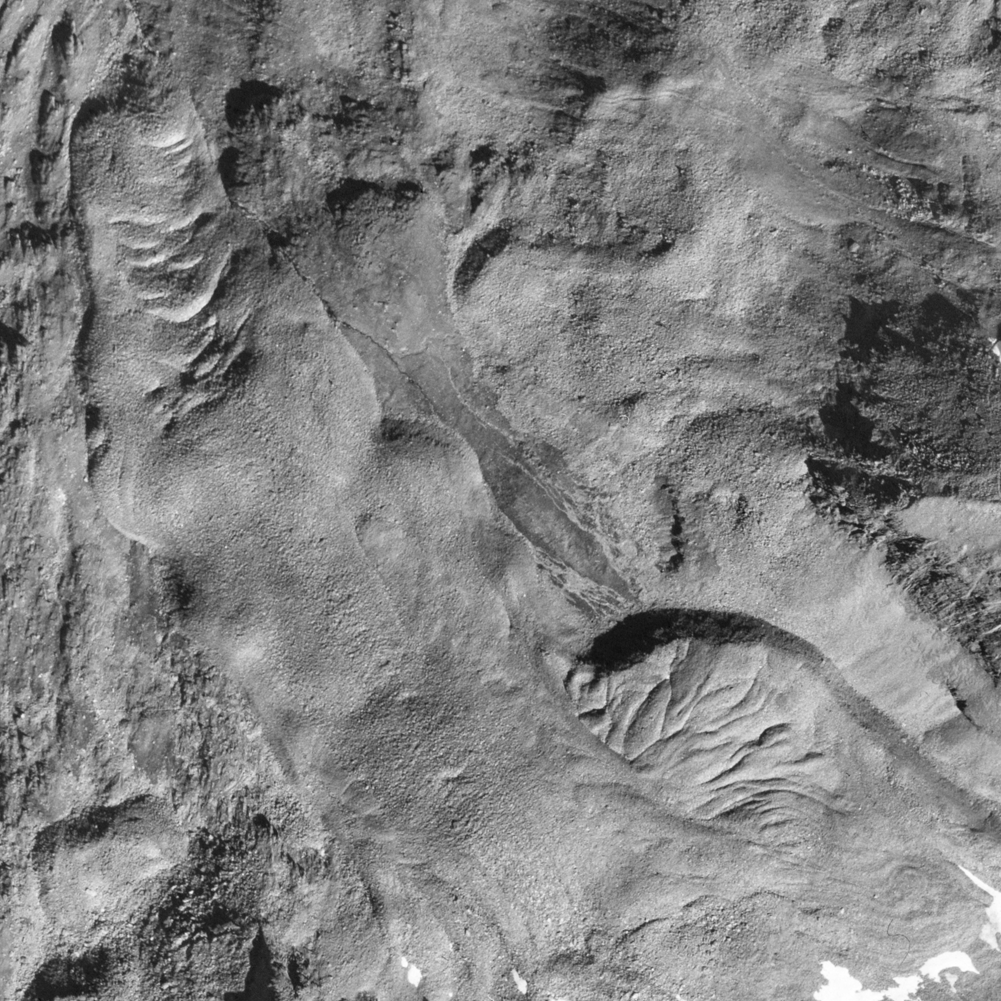

Movement of the Outer Hochebenkar rock glacier (animated GIF)

1997 - 2003

Outer/Äußeres Hochebenkar rock glacier
Aerial photographs © BEV, Vienna. Image data of 2003 taken from Microsoft Bing Maps.
© by Viktor Kaufmann, Graz University of Technology, 2010

Download animated GIF (1.9 MB)
HMC2010_Kaufmann_Subset.ppt  (10.3 MB)

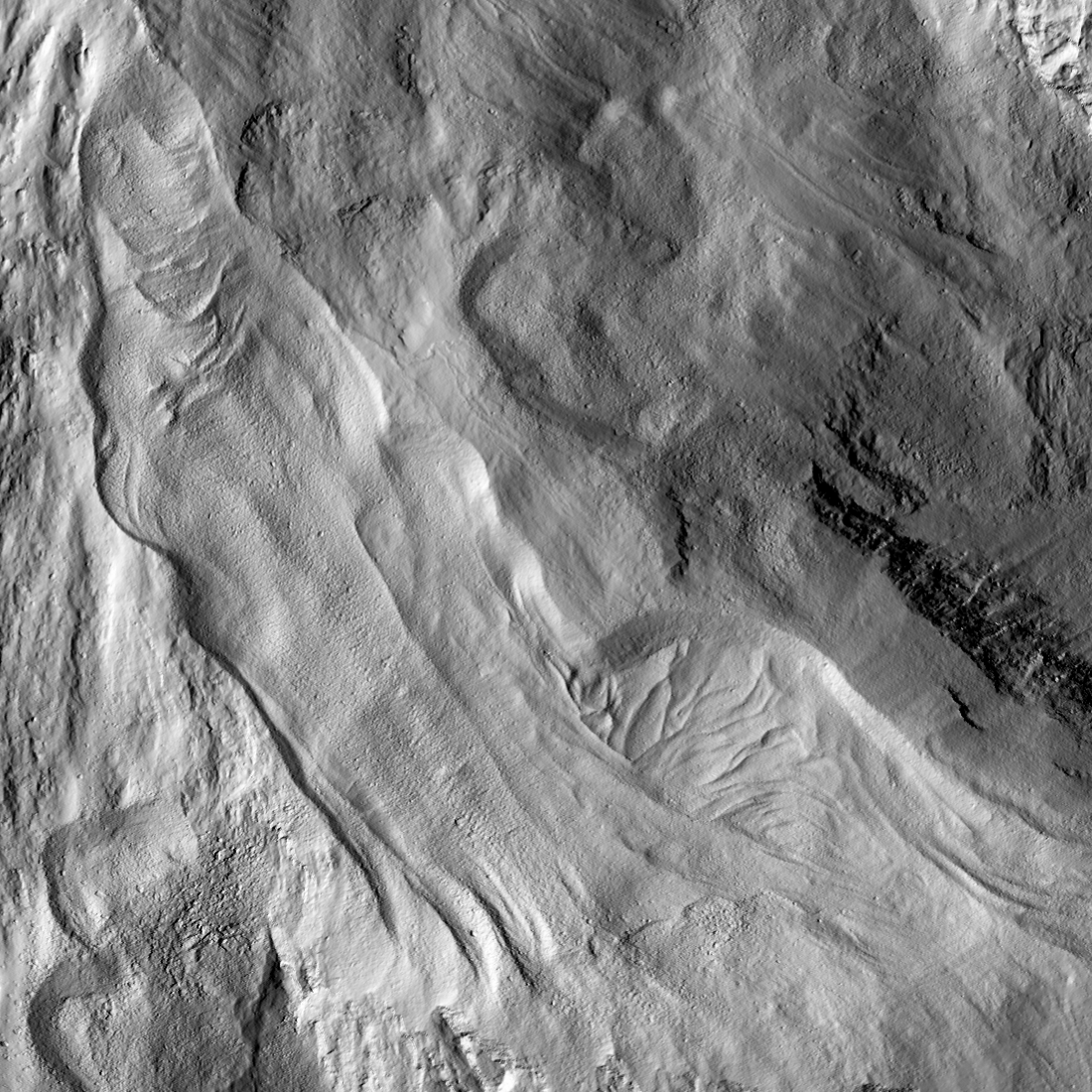

  2006-2010

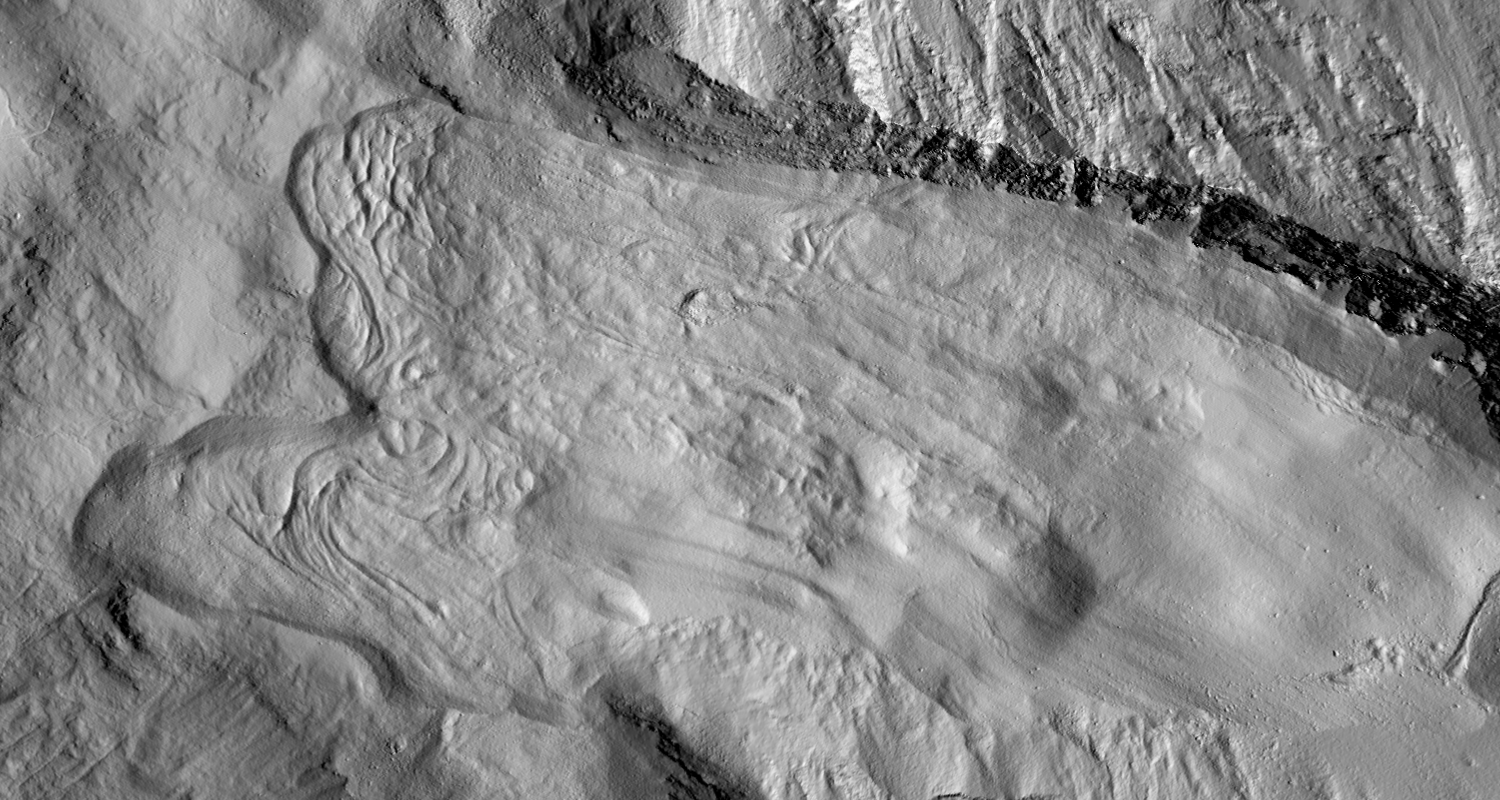

ALS DSM 2006 Inneres Hochebenkar rock glacier,
                  shaded relief
Epoch 1: 23.8.2006, airborne laser scanning (ALS), digital surface model (DSM), grid spacing 1 m, data © Land Tirol
Epoch 2: 9.10.2010, airborne laser scanning (ALS), digital surface model (DSM), grid spacing 1 m, data © Land Tirol
Shaded relief produced with SURFER: lighting from the east
© by Viktor Kaufmann, Graz University of Technology, 2015

Download animated GIF (2.65 MB)


Movement of the Inner Hochebenkar rock glacier (animated GIF)

 2006-2010
Inner Hochebenkar rock glacier
Epoch 1: 23.8.2006, airborne laser scanning (ALS), digital surface model (DSM), grid spacing 1 m, data © Land Tirol
Epoch 2: 9.10.2010, airborne laser scanning (ALS), digital surface model (DSM), grid spacing 1 m, data © Land Tirol
Shaded relief produced with SURFER: lighting from the east
© by Viktor Kaufmann, Graz University of Technology, 2015

Download animated GIF (2.43 MB)

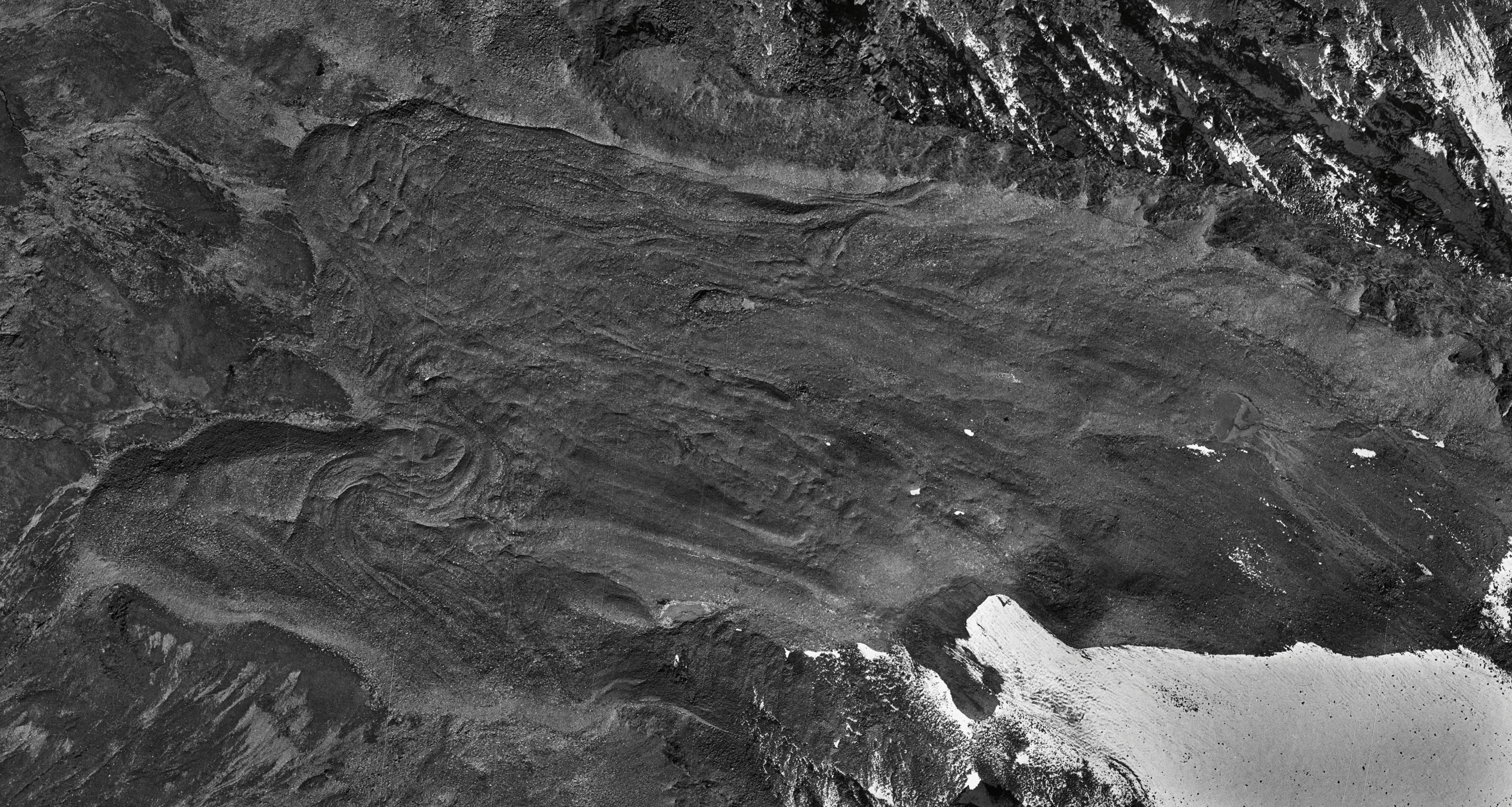

 1953-2003
Inner Hochebenkar rock glacier
Epoch 1: 31.8.1953, orthophoto, GSD 0.5 m, image data © BEV, Vienna
Epoch 2: 5.9.2003, orthophoto, GSD 0.5 m, data © Land Tirol
© by Viktor Kaufmann, Graz University of Technology, 2015

Download animated GIF (8.86 MB)

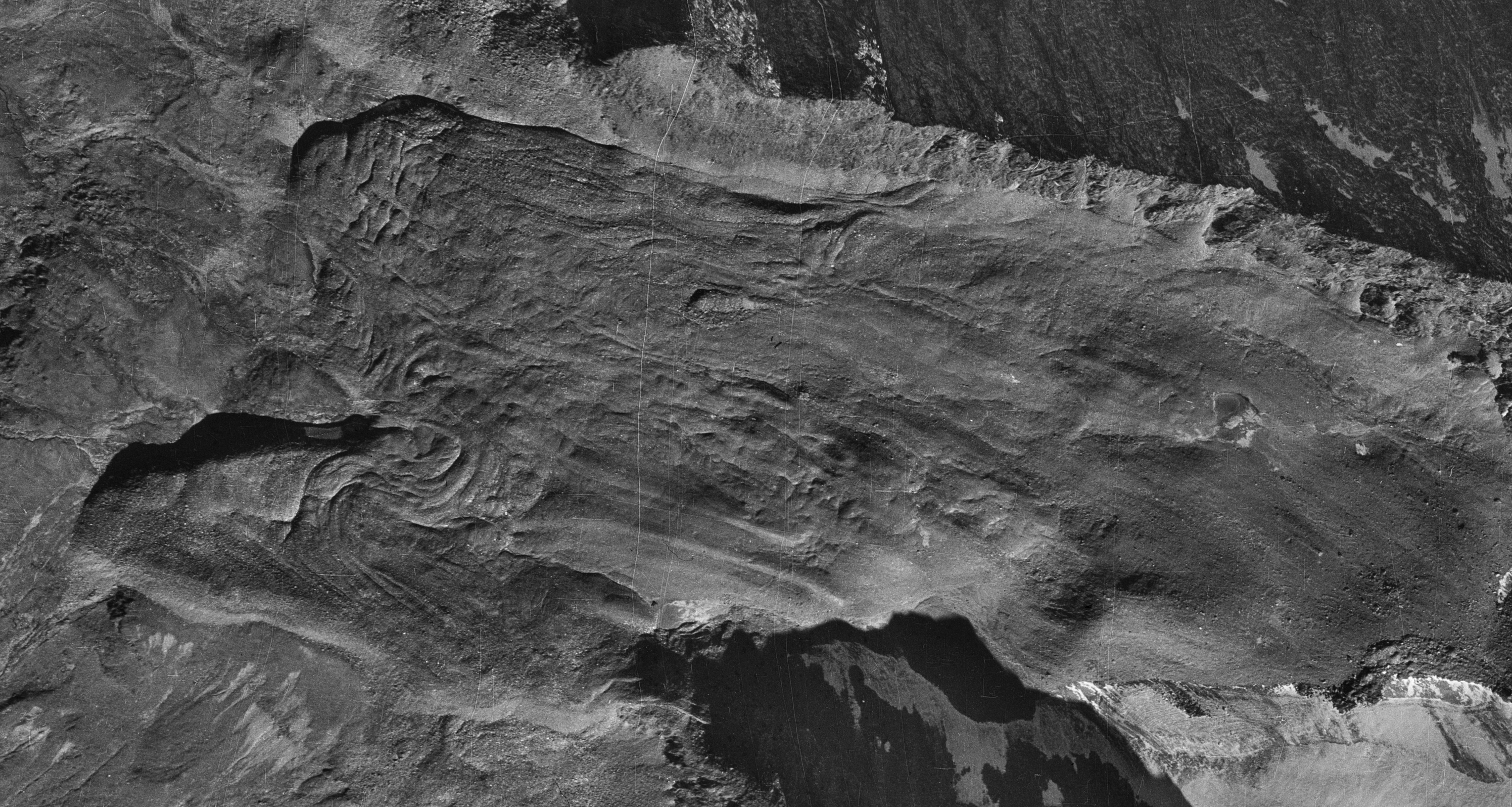

 1969-1997
Inner Hochebenkar rock glacier
Epoch 1: 24.9.1969, orthophoto, GSD 0.5 m, image data © BEV, Vienna
Epoch 2: 11.9.1997, orthophoto, GSD 0.5 m,  image data © BEV, Vienna
© by Viktor Kaufmann, Graz University of Technology, 2015

Download animated GIF (9.20 MB)


 1953-2003
Inner Hochebenkar rock glacier
Epoch 1: 31.8.1953, orthophoto, GSD 0.5 m, image data © BEV, Vienna
Epoch 2: 5.9.2003, orthophoto, GSD 0.5 m, data © Land Tirol
© by Viktor Kaufmann, Graz University of Technology, 2015

Download animated GIF (8.79 MB)


1953-1969-1997-2003-2010
Inner Hochebenkar rock glacier
Epoch 1: 31.8.1953, orthophoto, GSD 0.5 m, image data © BEV, Vienna
Epoch 2: 24.9.1969, orthophoto, GSD 0.5 m, image data © BEV, Vienna
Epoch 3: 11.9.1997, orthophoto, GSD 0.5 m, image data © BEV, Vienna
Epoch 4: 5.9.2003, orthophoto, GSD 0.5 m, data © Land Tirol
Epoch 5: 11.9.2010, orthophoto, GSD 0.5 m, data © Land Tirol
© by Viktor Kaufmann, Graz University of Technology, 2015

Download animated GIF (21.30 MB)



Hinteres Langtalkar  rock glacier

Rock glacier Hinteres Langtalkar, Austria
Documentation of the movement of the Hinteres Langtalkar rock glacier
[Abstract]
© by Viktor Kaufmann, Graz University of Technology, 2004

 Download animated GIF (2.2 MB)
 Download animated GIF (3.8 MB)

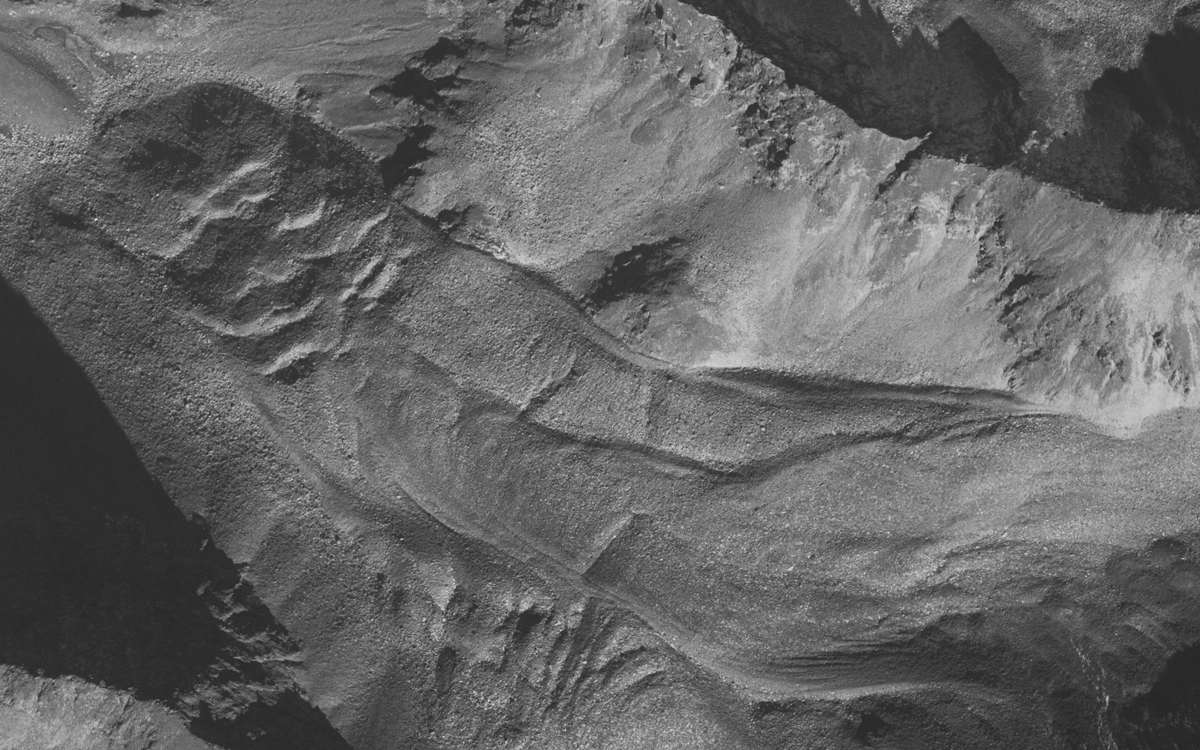

 Download time-series 2002-2006 animated GIF (1.9 MB)

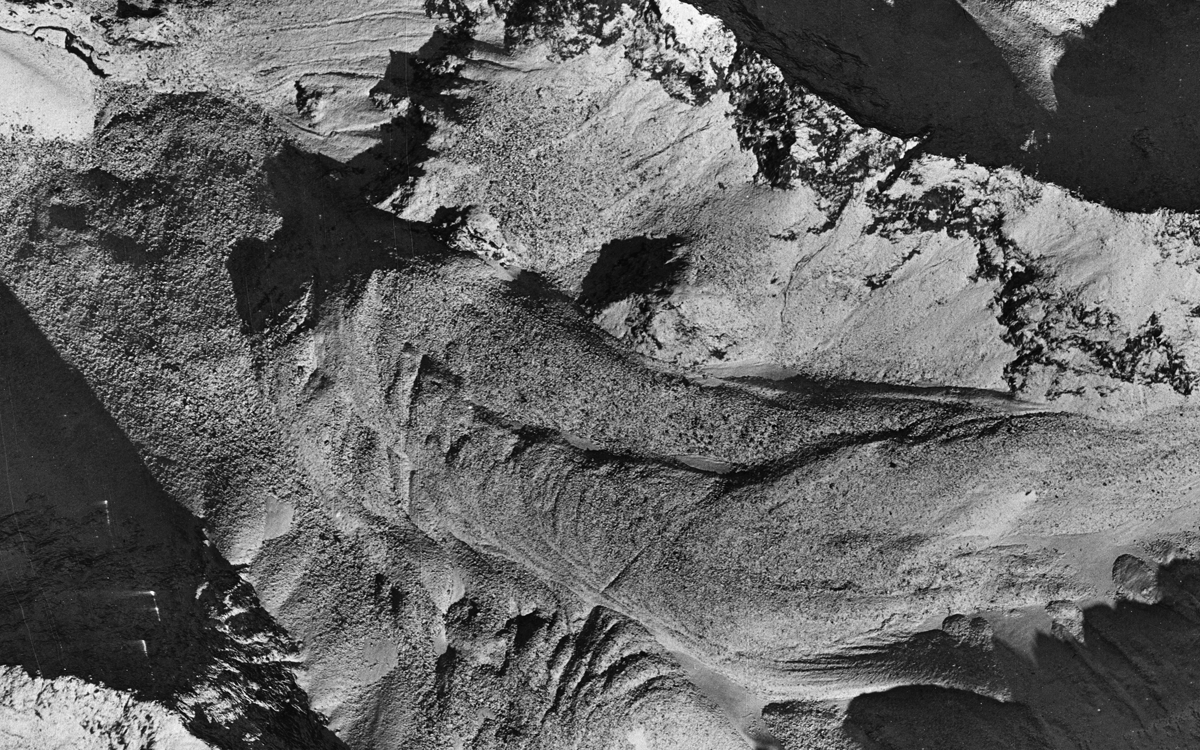

 Download time-series 1954-2006 animated GIF (9.8 MB)
 Download orthophoto map (17.4 MB)


Blaubach landslide

Blaubach landslide, Austria
Morphometric documentation and computer-based visualization of slope deformation and slope creep of the Blaubach landslide (Salzburg, Austria)
[Abstract] [ Paper ] [ PPT ]

© by Viktor Kaufmann, Graz University of Technology, 2004


Doesen rock glacier

 Download orthophoto map (1.2 MB). Orthophoto map 1:10,000 "Inneres Dösener Tal, Ankogelgruppe"

Doesen rock glacier, Austria
10 years of monitoring of the Doesen rock glacier (Ankogel group, Austria) - A review of the research activities for the time period 1995-2005
[Abstract] [Paper]

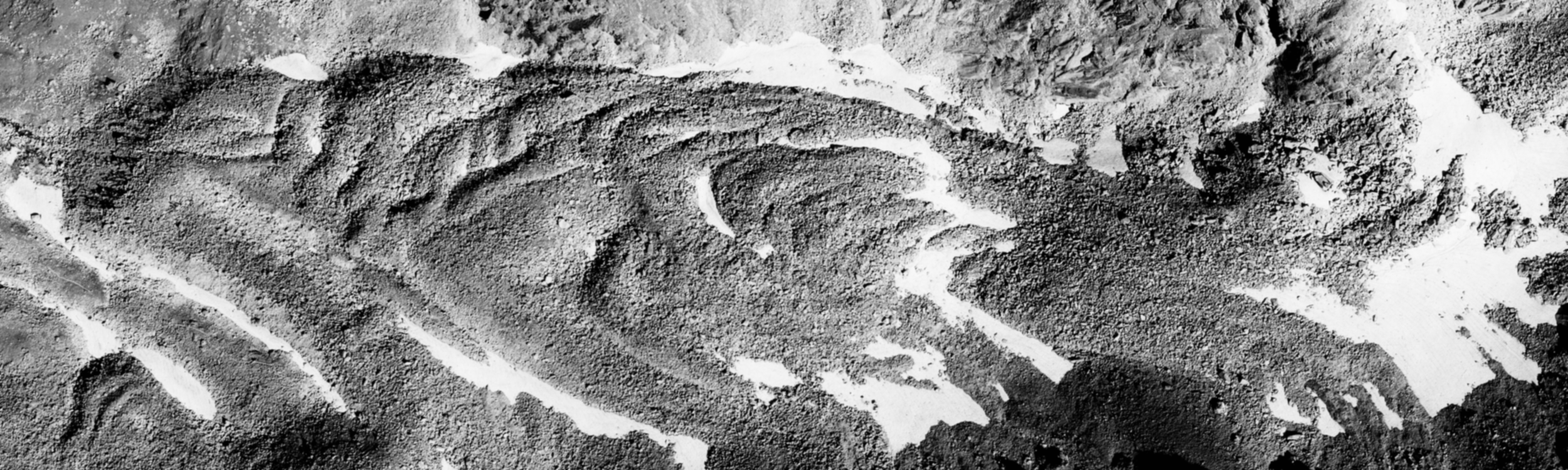

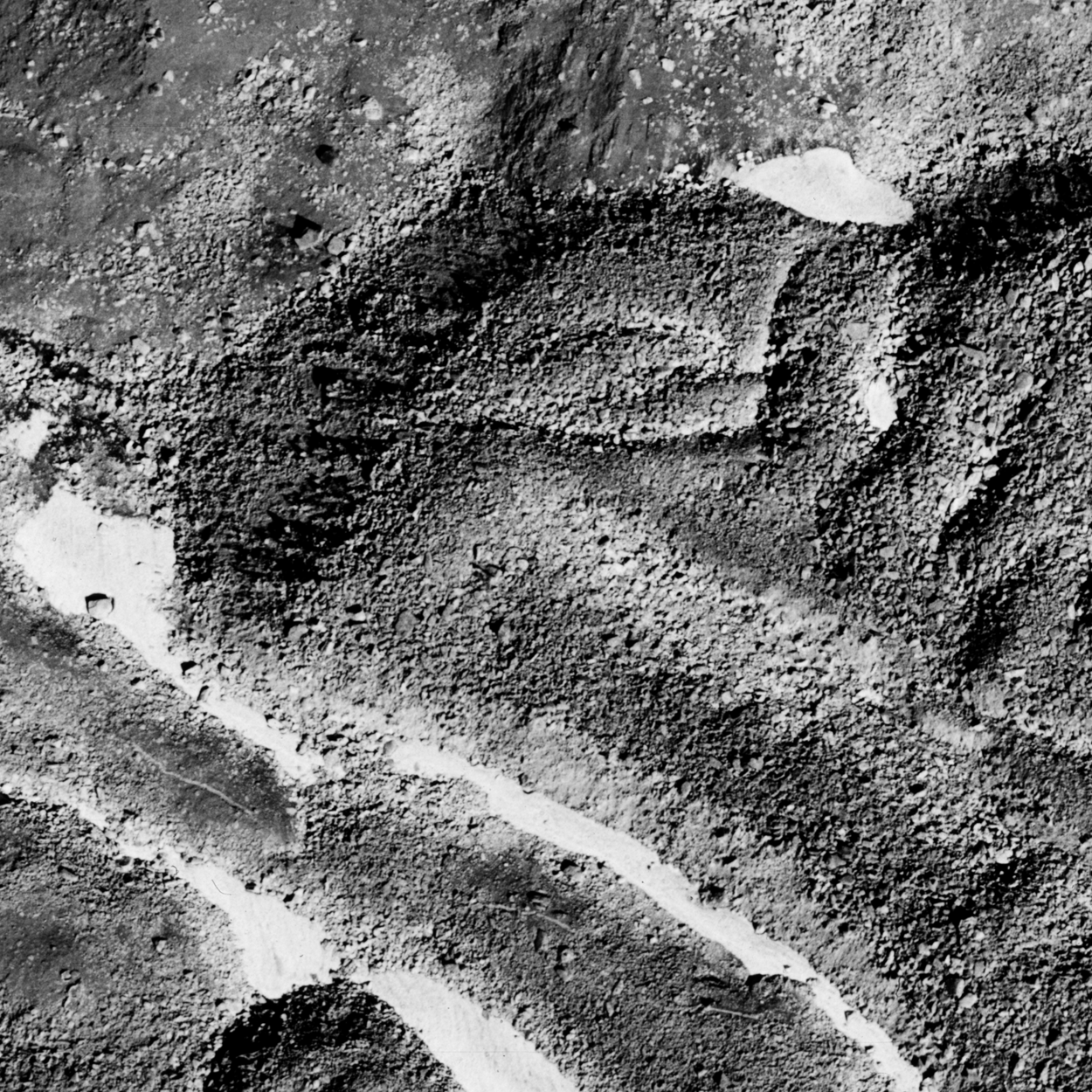

Aerial photographs: 15.8.1993, CIR; 1.9.1997, B/W

Download animated GIF (4.3 MB)

Doesen rock glacier, Austria
Aerial photographs, 15.8.1993, CIR; 1.9.1997, B/W

© by Viktor Kaufmann, Graz University of Technology, 2006

 Download animated GIF (3.6 MB)
 Doesen rock glacier.ppt  (9.5 MB)

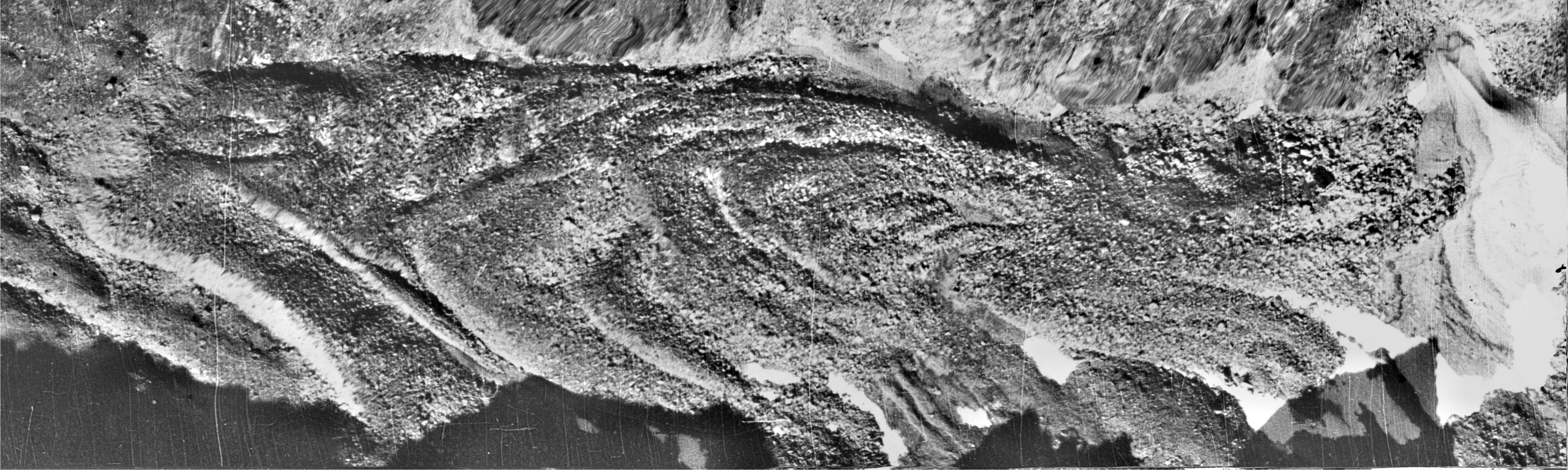

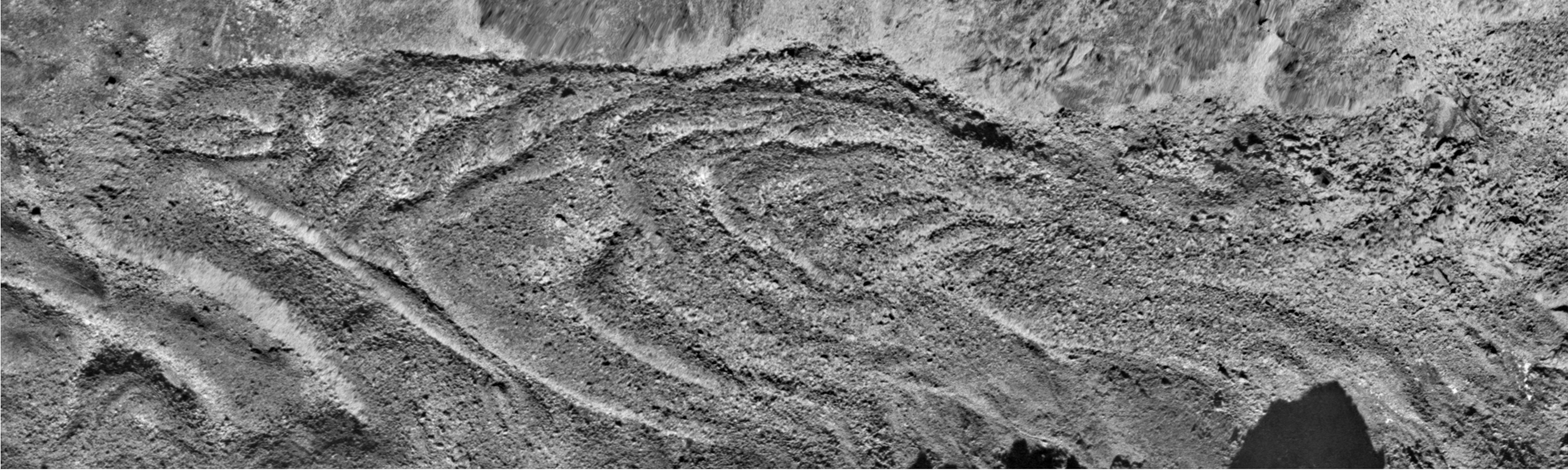

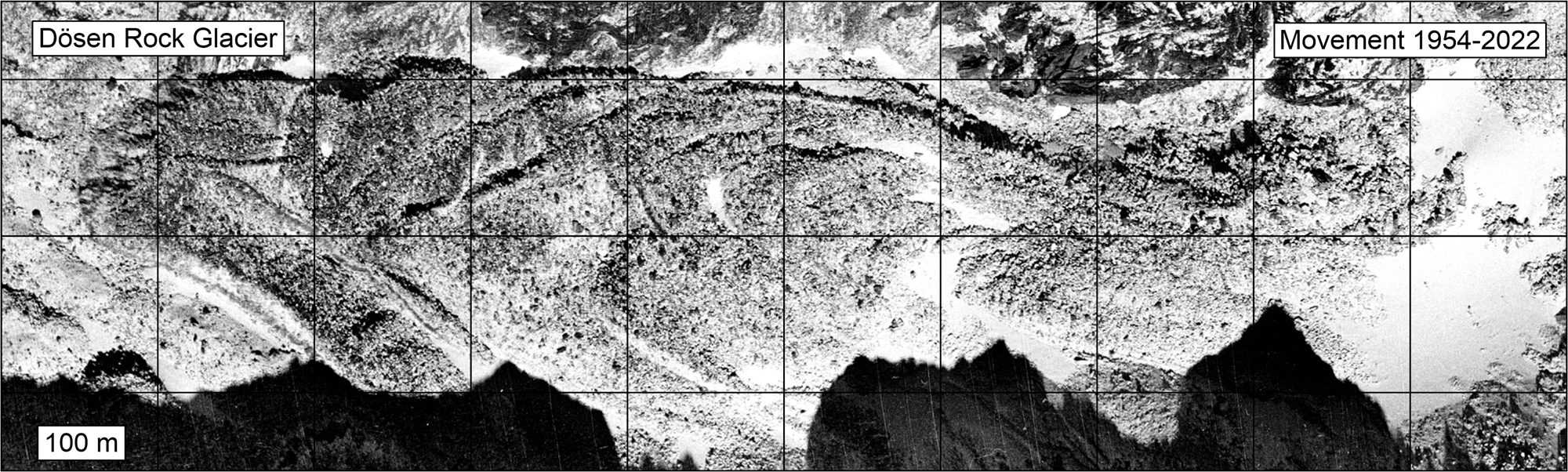

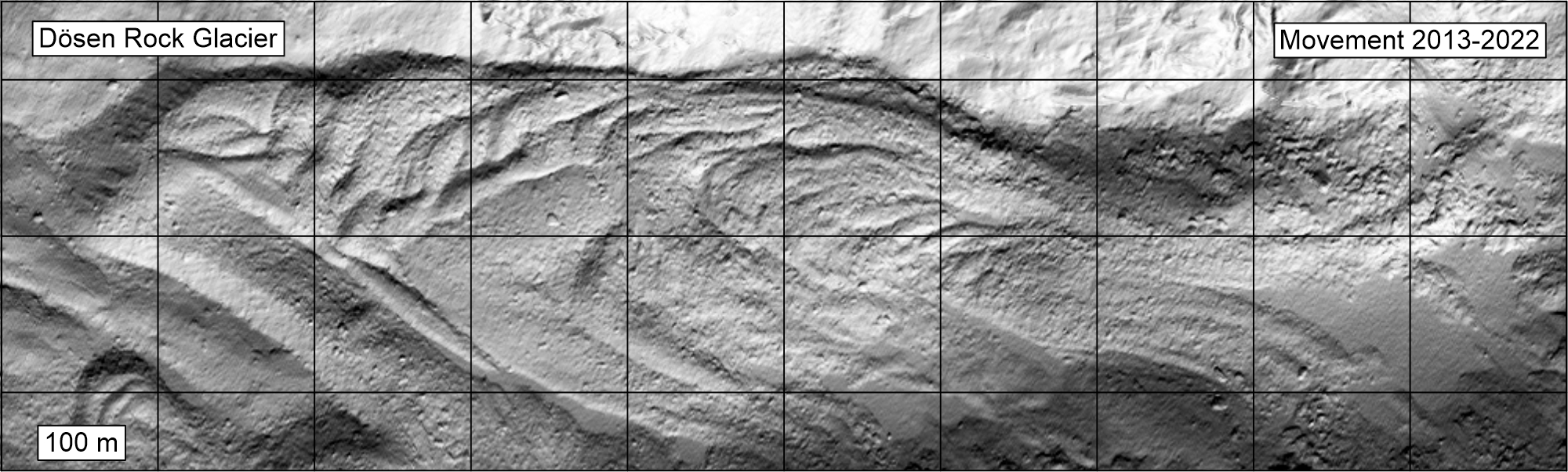

Movement of Dösen rock glacier
Dösen rock glacier (1969)
1969-1998
Dösen rock glacier (1998)
1998-2010
Dösen rock glacier (2010)
1969-1998-2010
Aerial photographs © BEV, Vienna

© by Viktor Kaufmann, Graz University of Technology, 2014

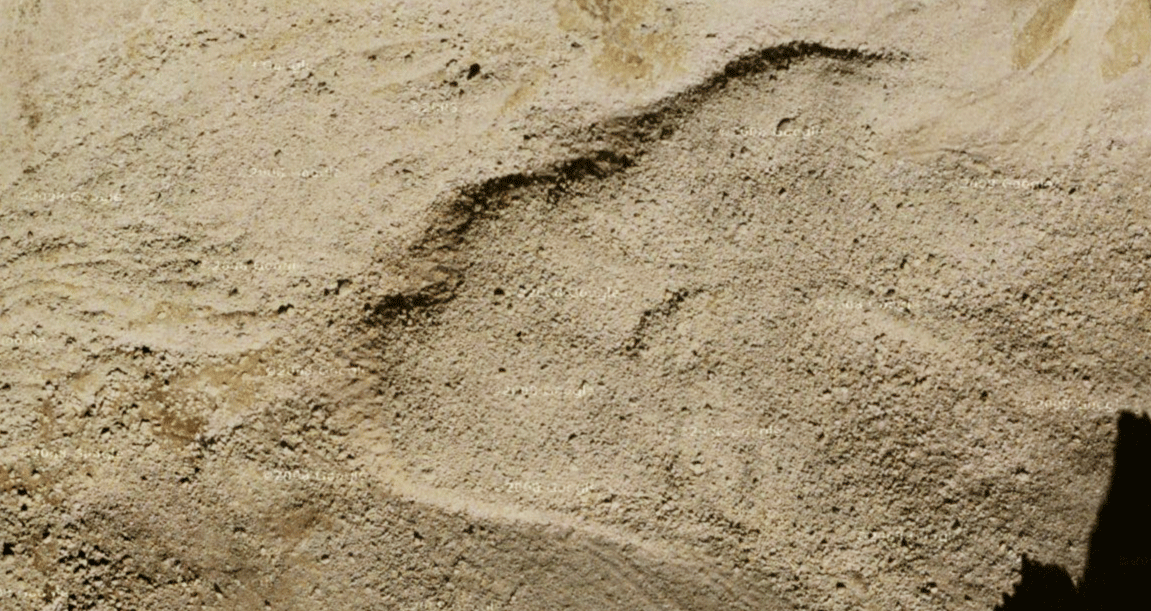

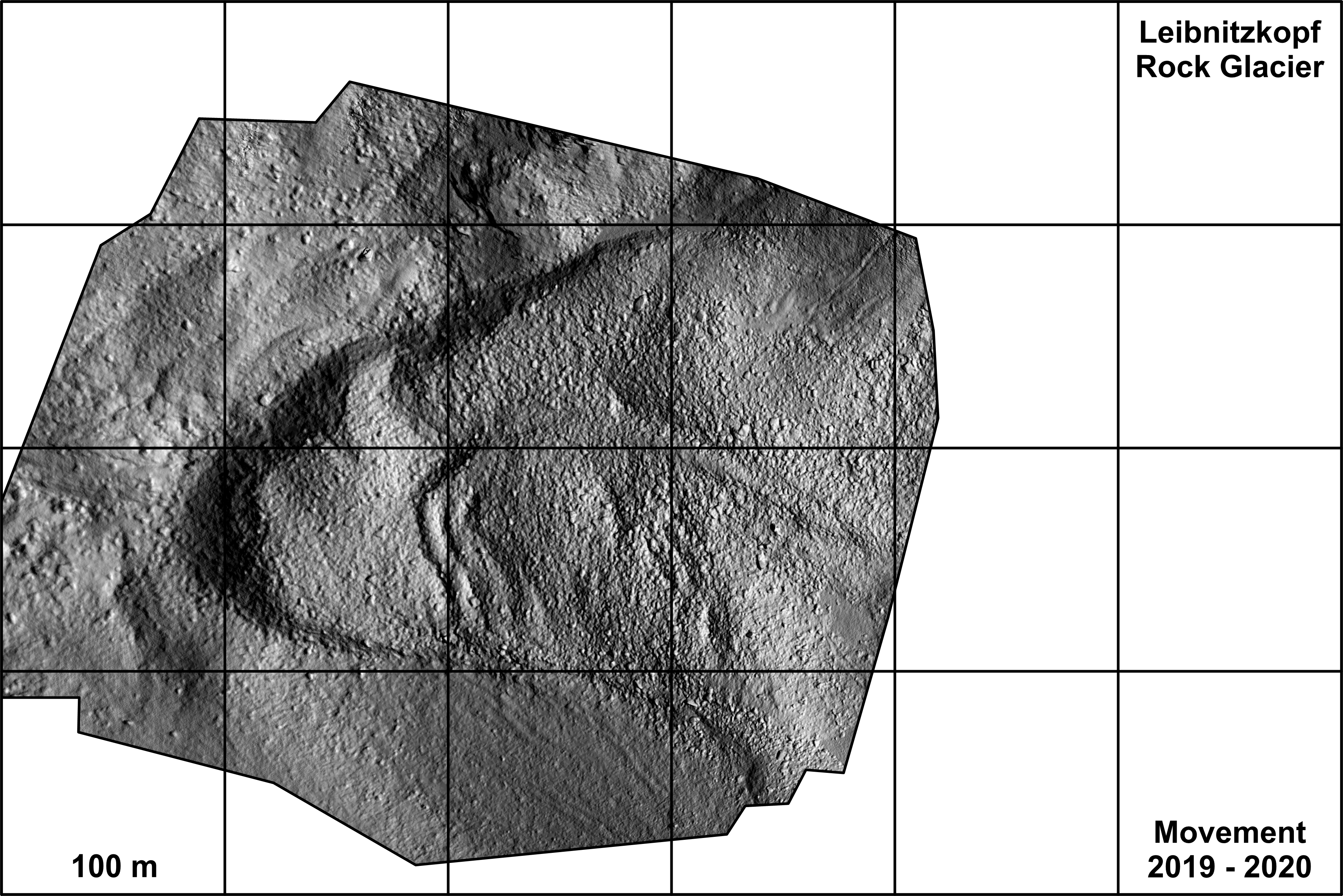

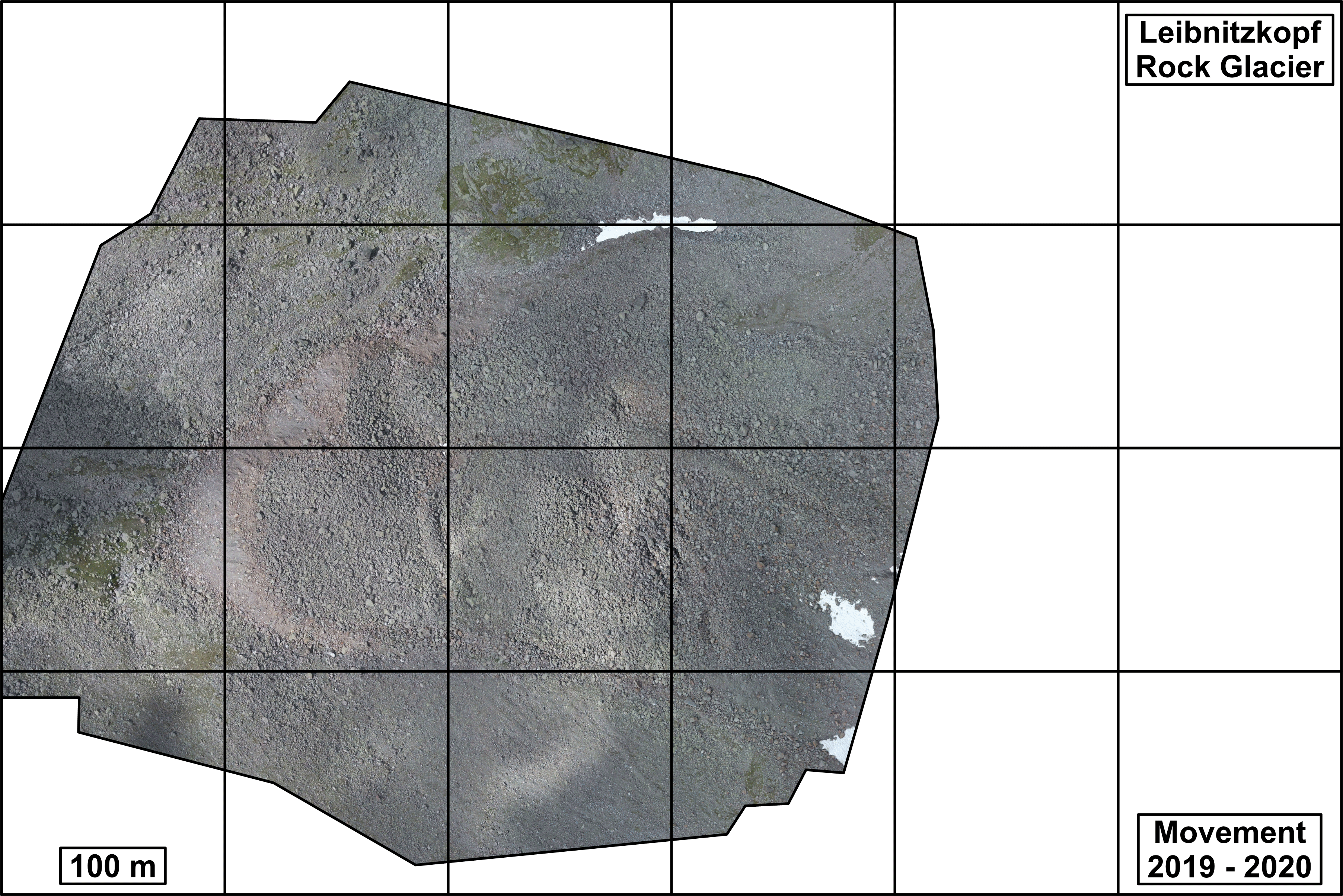

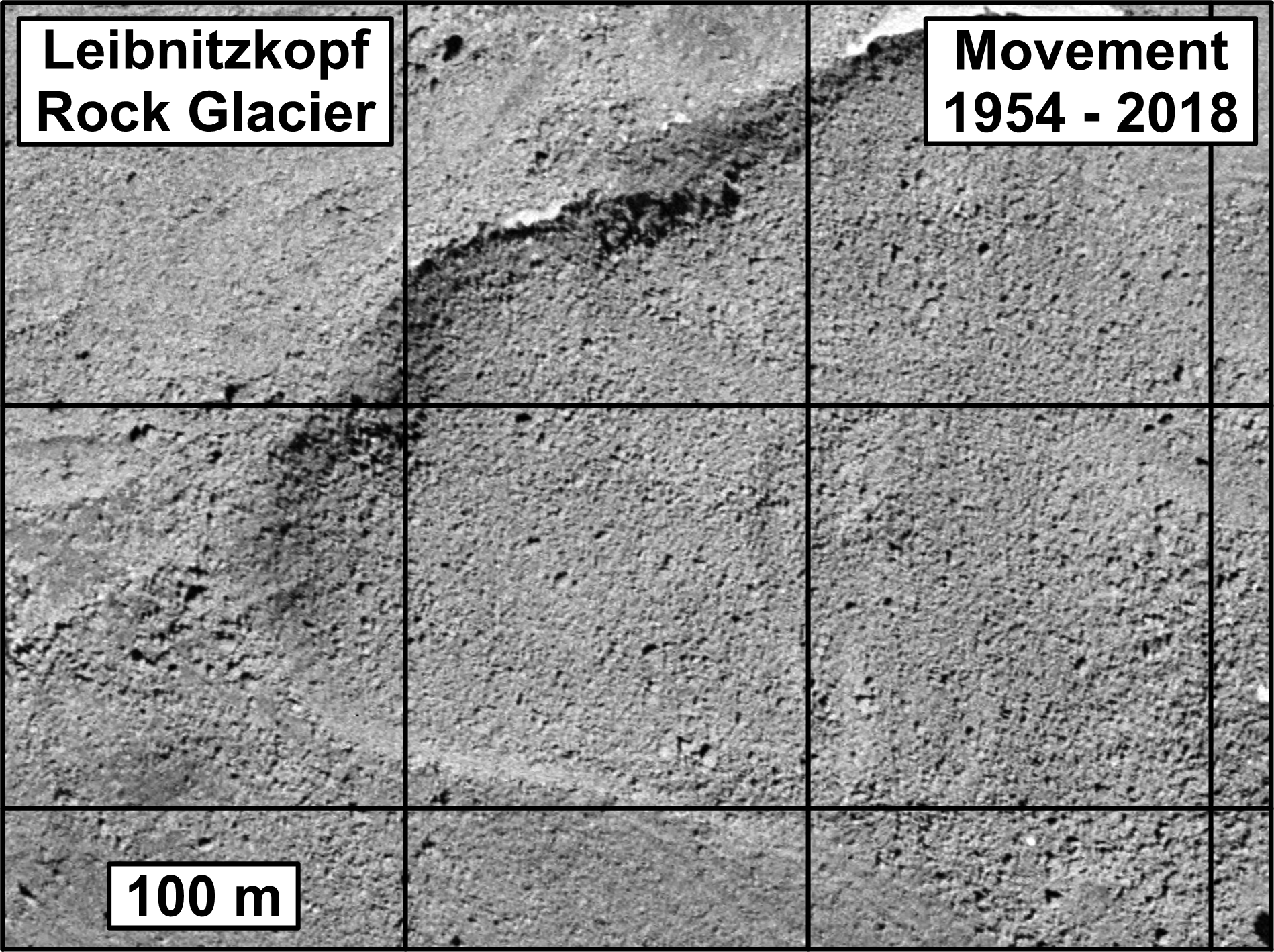

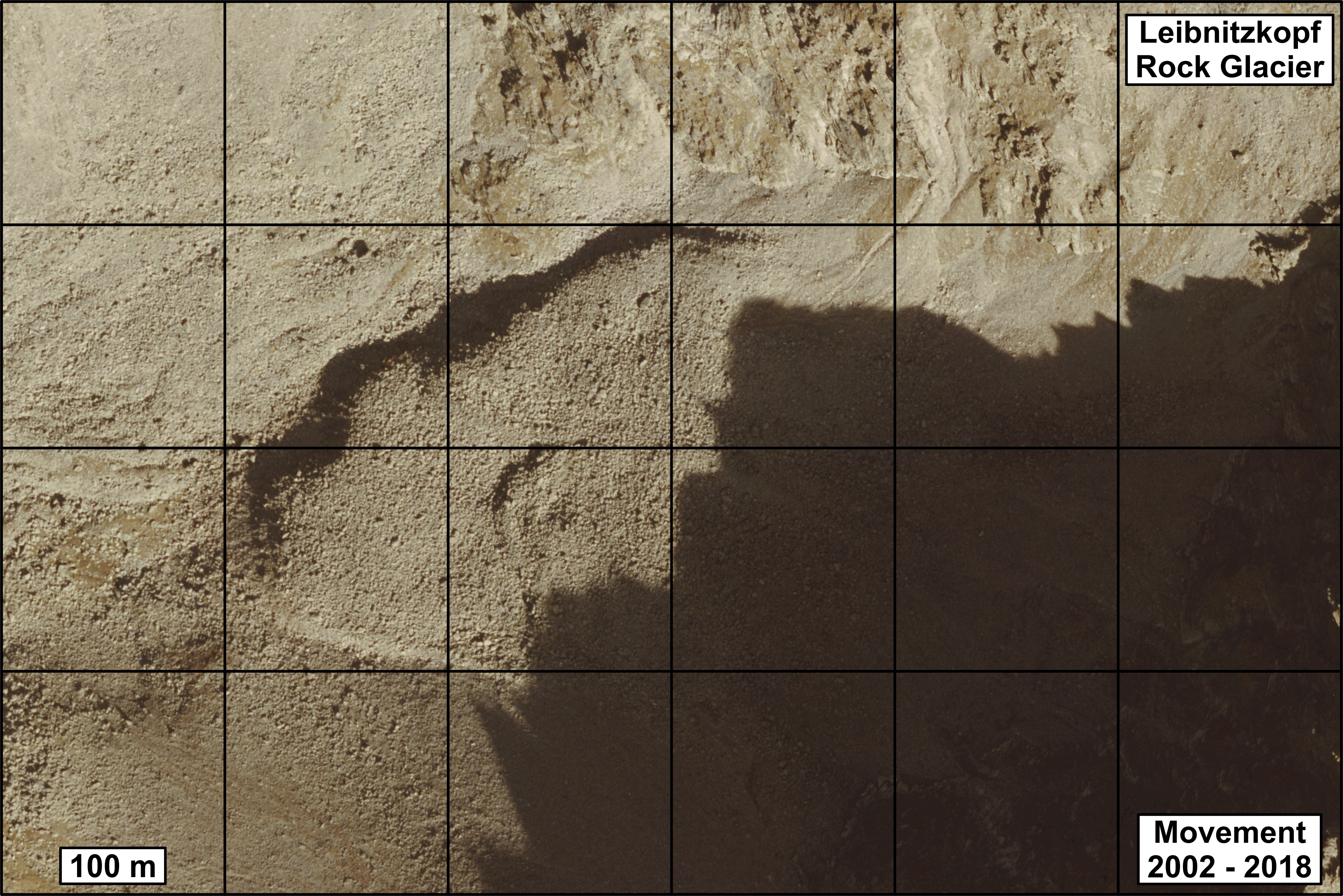

Leibnitzkopf rock glacier

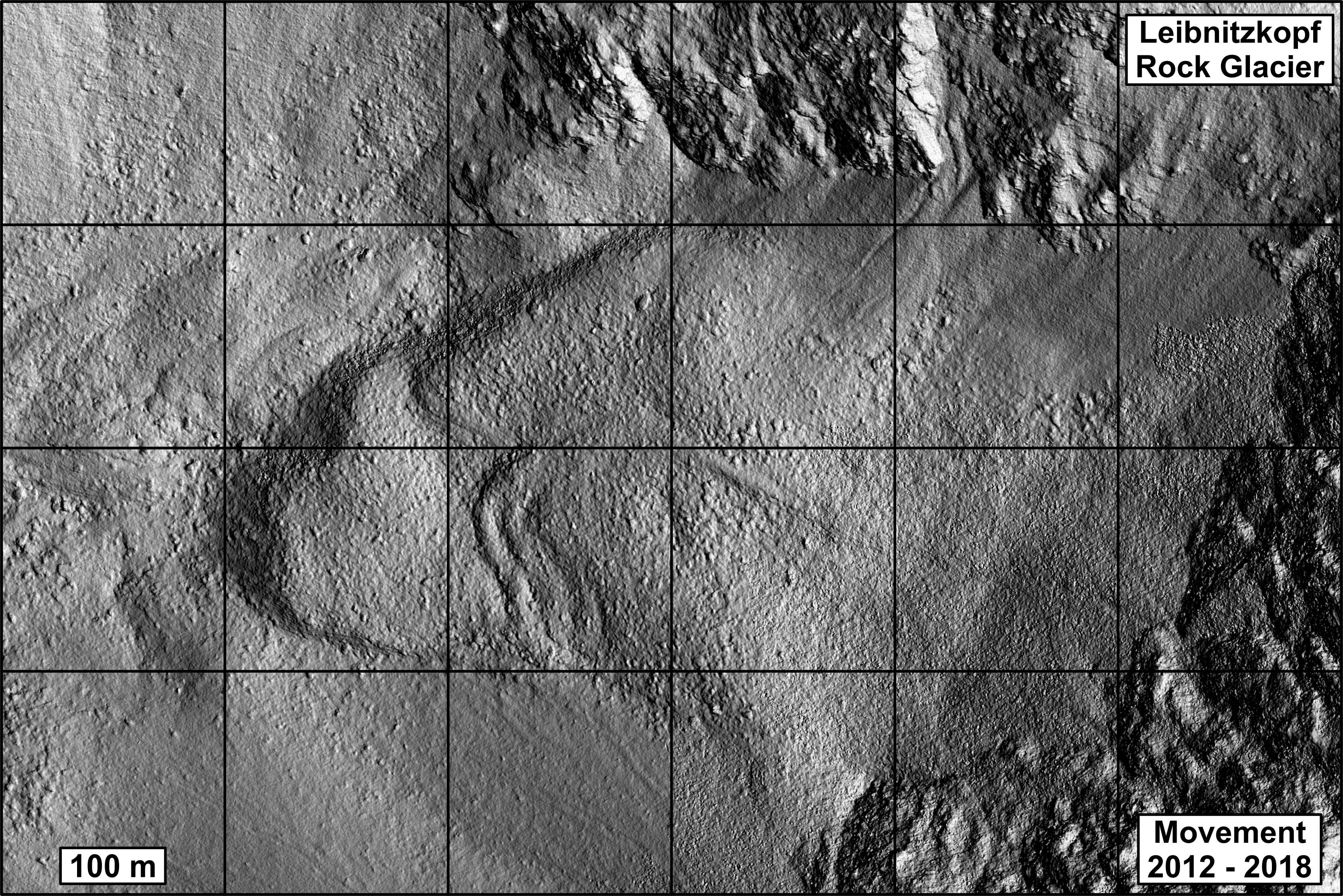

Leibnitzkopf rock glacier, Google Maps
Detection and measurement of highly active rock glaciers using mulit-temporal high-resolution orthophotos of virtual globes, such as Google Maps and Microsoft Virtual Earth/Bing Maps
[Abstract] [Paper]
Aerial photograph, GSD 40 cm (Google Maps): 18.9.2002
Download animated GIF

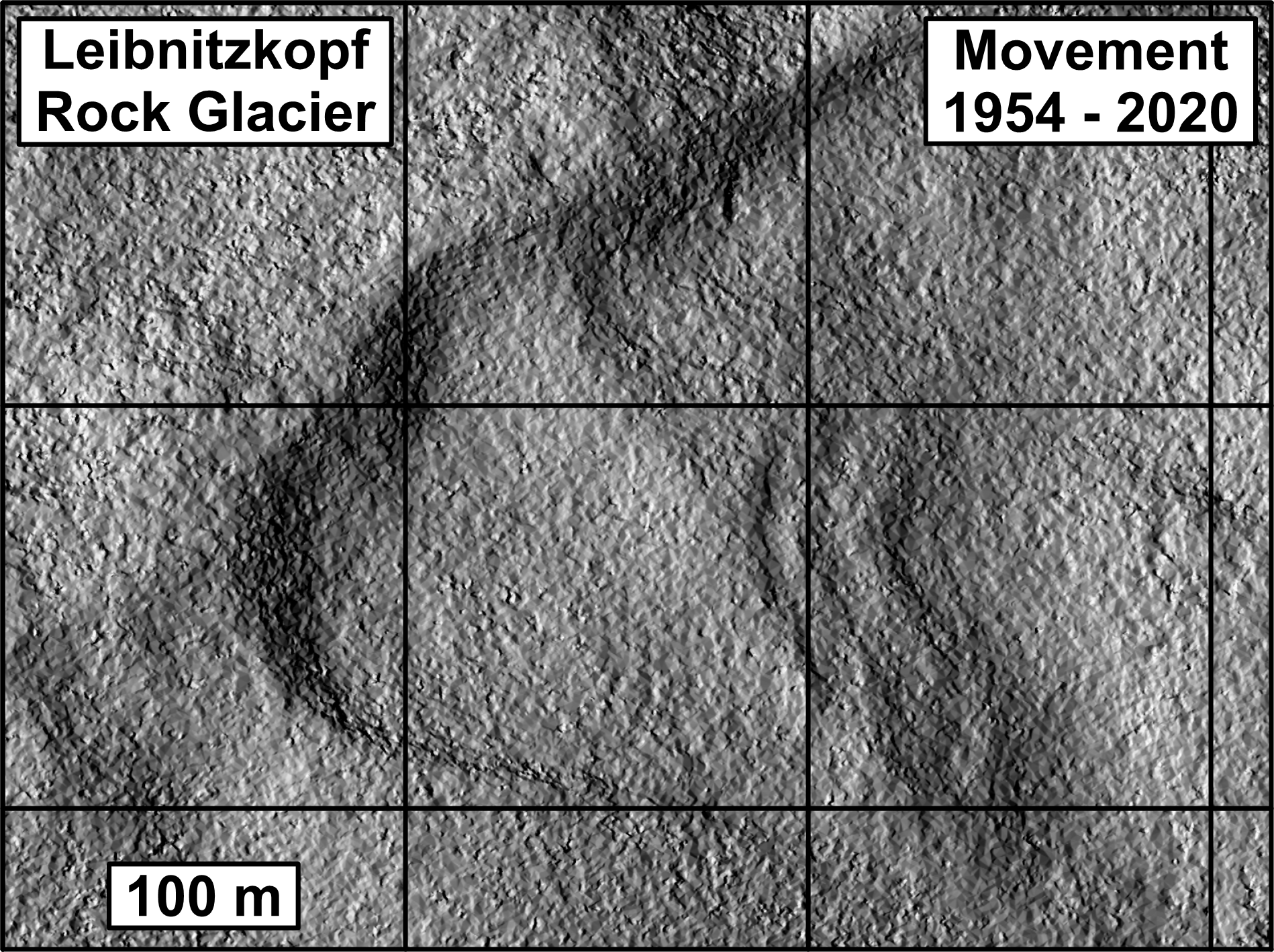

Leibnitzkopf rock glacier, Google Maps

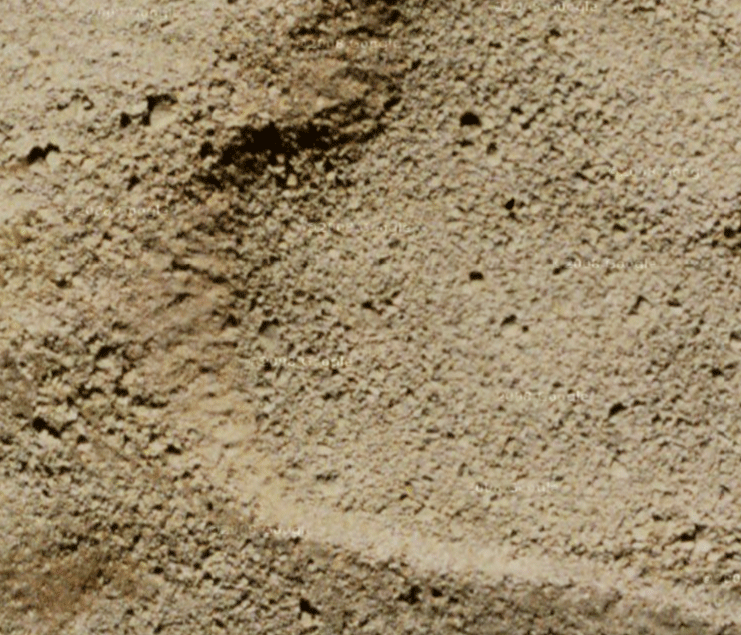

Aerial photograph, GSD 20 cm (Google Maps): 18.9.2002
Download animated GIF

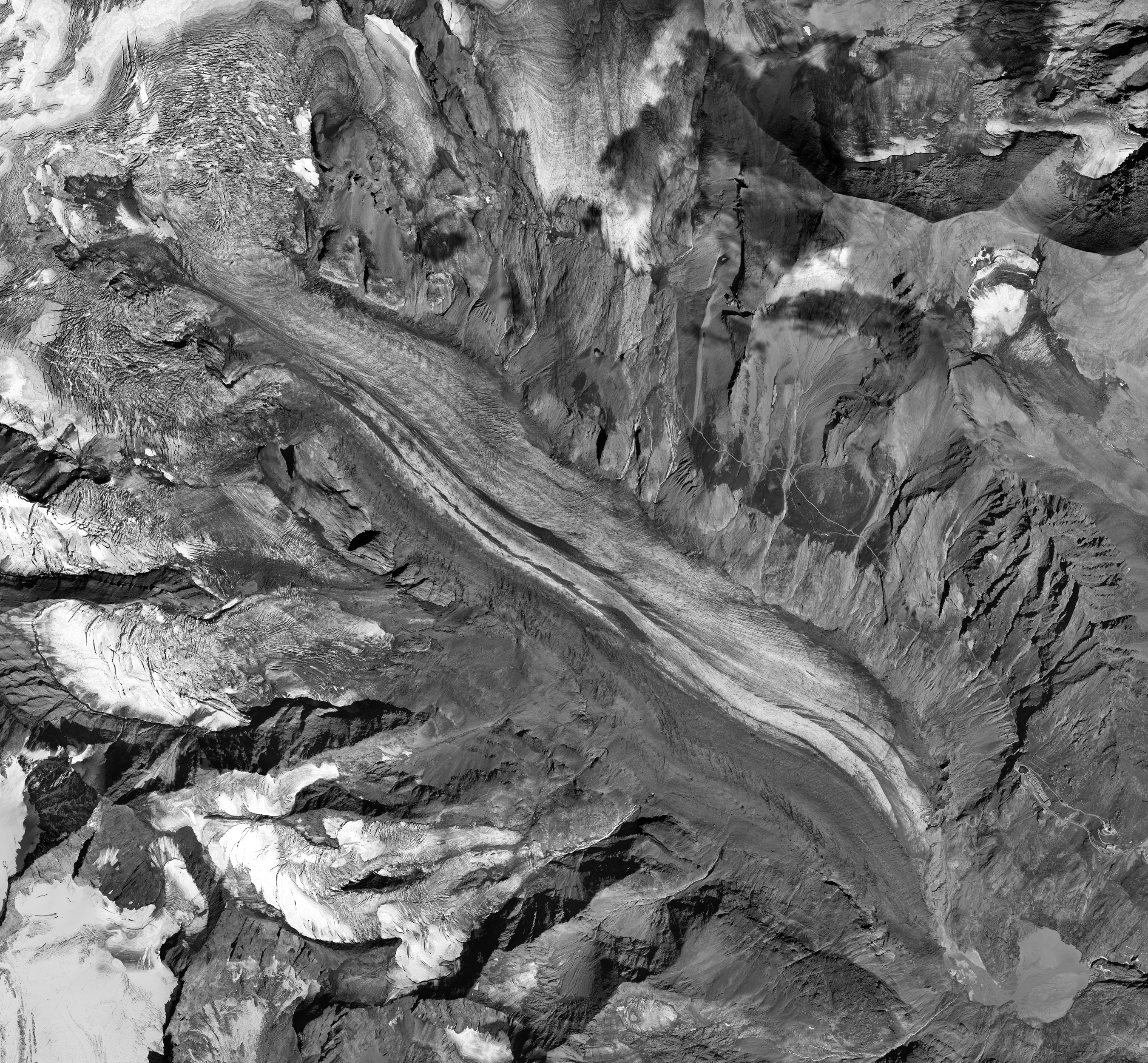

Pasterze

Pasterze
Orthophoto (mosaic of aerial photographs), GSD 20 m, 21./22.9.2006
Aerial photographs © Federal Office of Metrology and Surveying (BEV), Vienna
Download animated GIF (Source of data: H. Slupetzky/ University of Salzburg, BEV, TIRIS/ Regional Government of Tyrol)

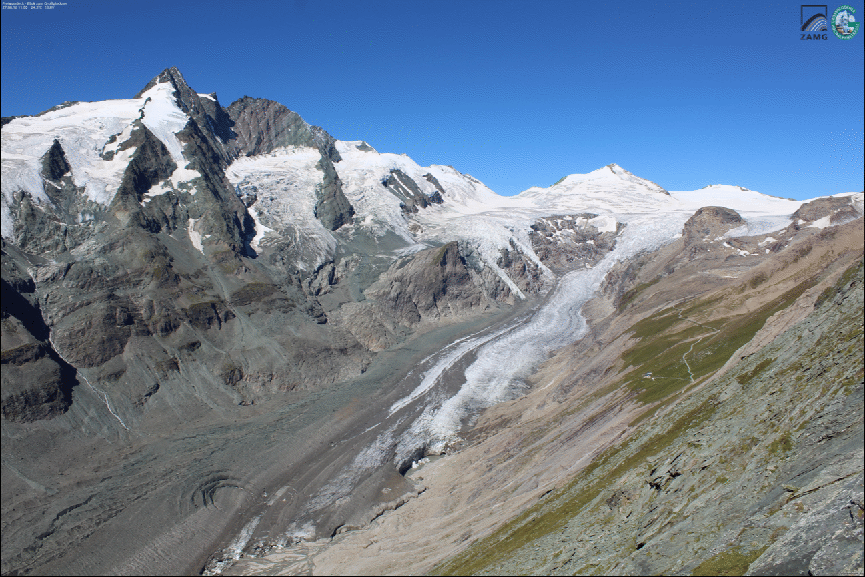

Freiwandeck - Blick zum Großglockner
Freiwandeck - Terrestrial view towards Grossglockner, 27.8.2016, 11:00 hrs, camera Canon EOS 1200D, 18 mm focal length
Photographs
© ZAMG & Großglockner Hochalpenstraße AG and provided by foto-webcam.eu
Download animated GIF (time-lapse photography: 27.8.2016, 29.8.2017)
Image registration carried out by Thomas Mikl (Institute of Geodesy, Graz University of Technology; Bildmessung KU, WS 2017/18)
Seminar work "Automatische Registrierung von Zeitreihenaufnahmen für die Visualisierung von raumzeitlichen Veränderungen mithilfe
der 2D-Homographie, des SIFT-Operators und des RANSAC-Algoithmus



Tschadinhorn rock glacier

Movement of Tschadinhorn rock glacier (animated GIFs)

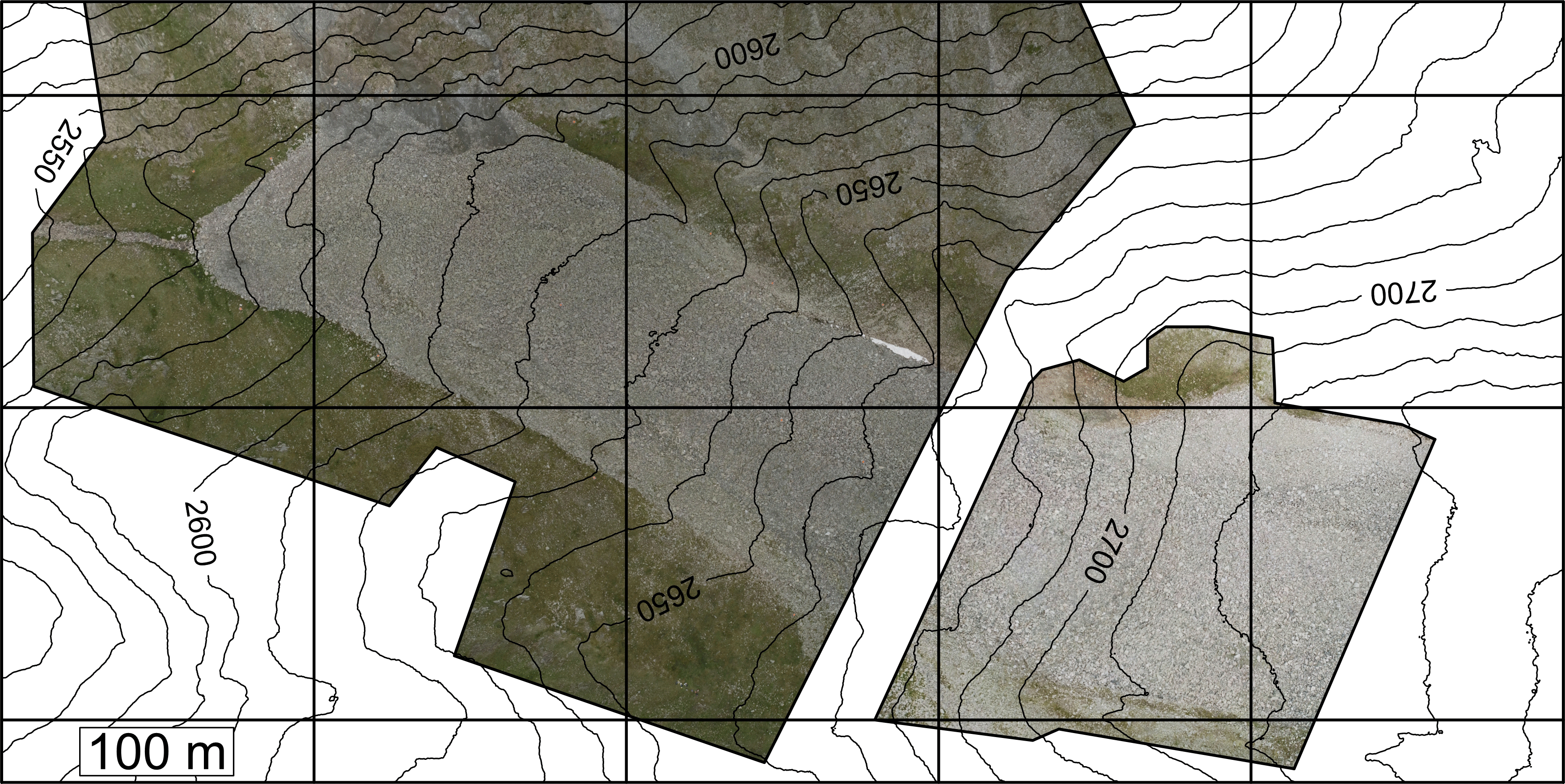

2016-2017
Tschadinhorn rock glacier
Epoch 1: 26.7.2016, orthophoto, GSD 15 cm, UAV data © UNI Graz/TU Graz
Epoch 2: 22.8.2017,
orthophoto, GSD 15 cm, UAV data © UNI Graz/TU Graz
Download animated GIF


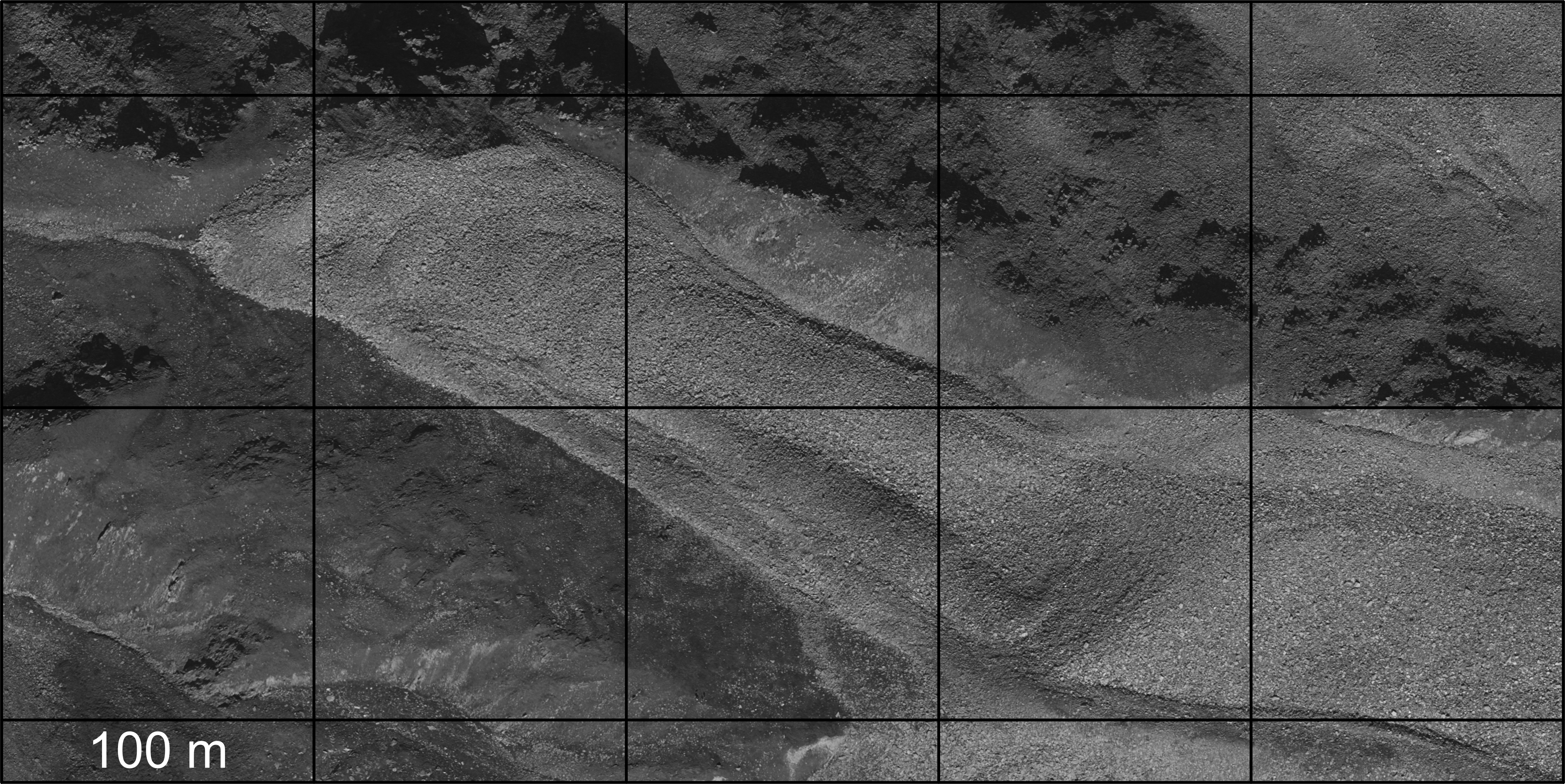

2015-2017
Tschadinhorn rock glacier
Epoch 1: 28.8.2015, orthophoto, GSD 10 cm, image data © BEV
Epoch 2: 22.8.2017,
orthophoto, GSD 10 cm, UAV data © UNI Graz/TU Graz

Download animated GIF


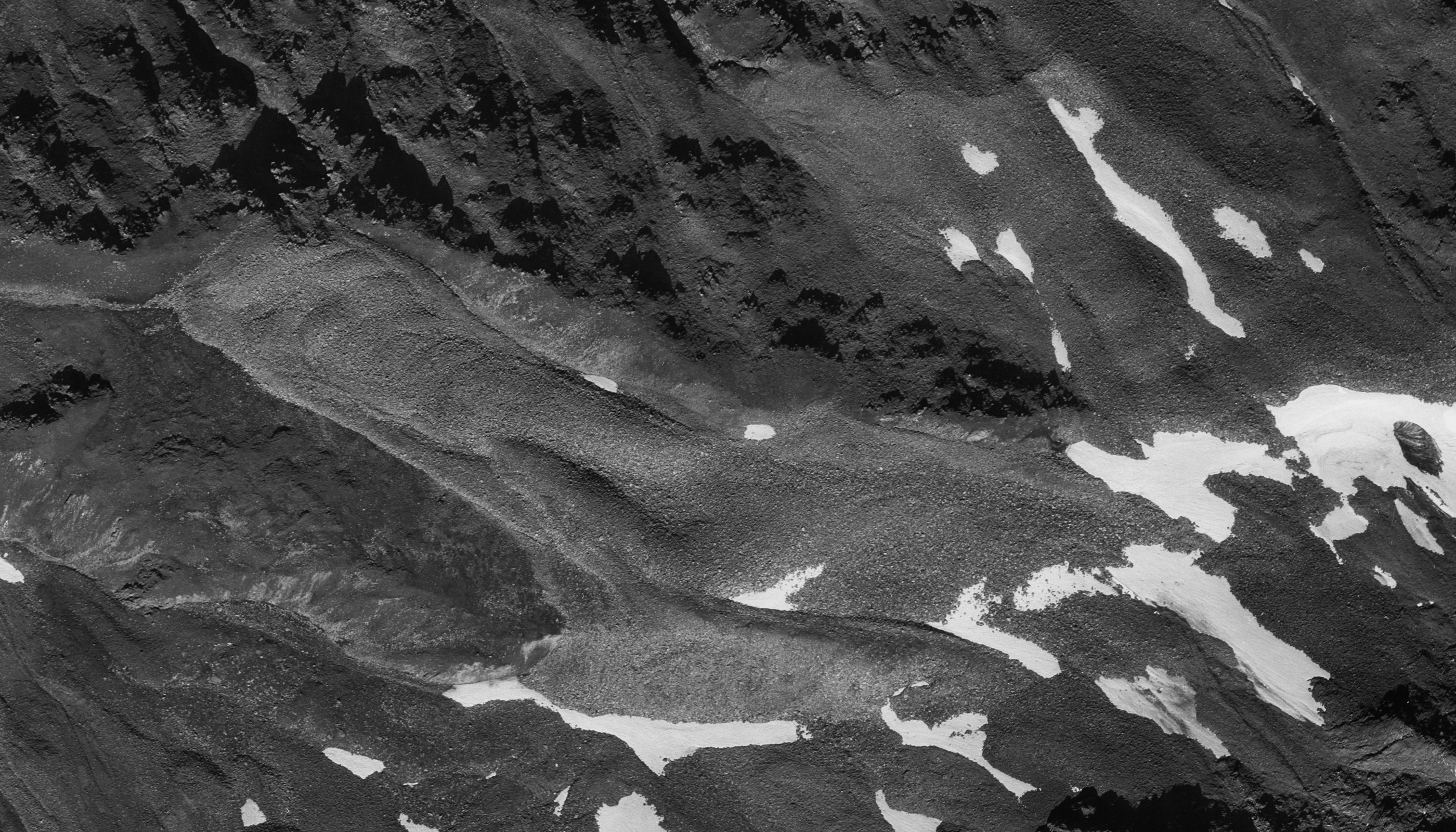

1974-2015
Tschadinhorn rock glacier
Digital orthophotos: GSD 25 cm
Epochs used: 6.9.1974, 18.9.1992, 18.9.2002, 8.9.2009, 28.8.2012,
28.8.2015 (all conventional aerial surveys)
Image data © BEV and Land Tirol
Download animated GIF

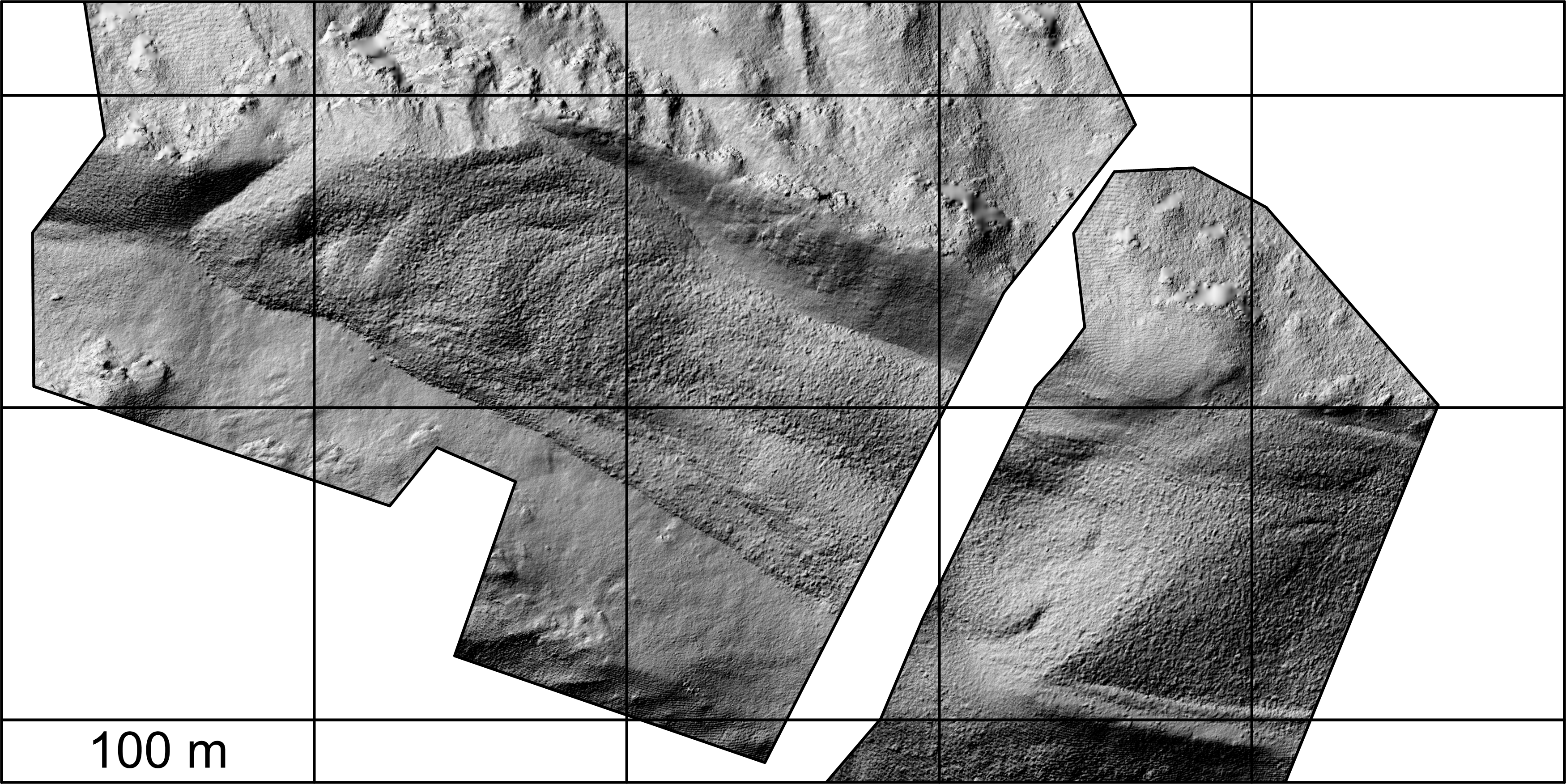

2016-2017
Tschadinhorn rock glacier
Epoch 1: 26.7.2016, digital surface model (DSM), grid spacing 20 cm, UAV data © UNI Graz/TU Graz
Epoch 2: 22.8.2017,
digital surface model (DSM), grid spacing 20 cm, UAV data © UNI Graz/TU Graz
Download animated GIF

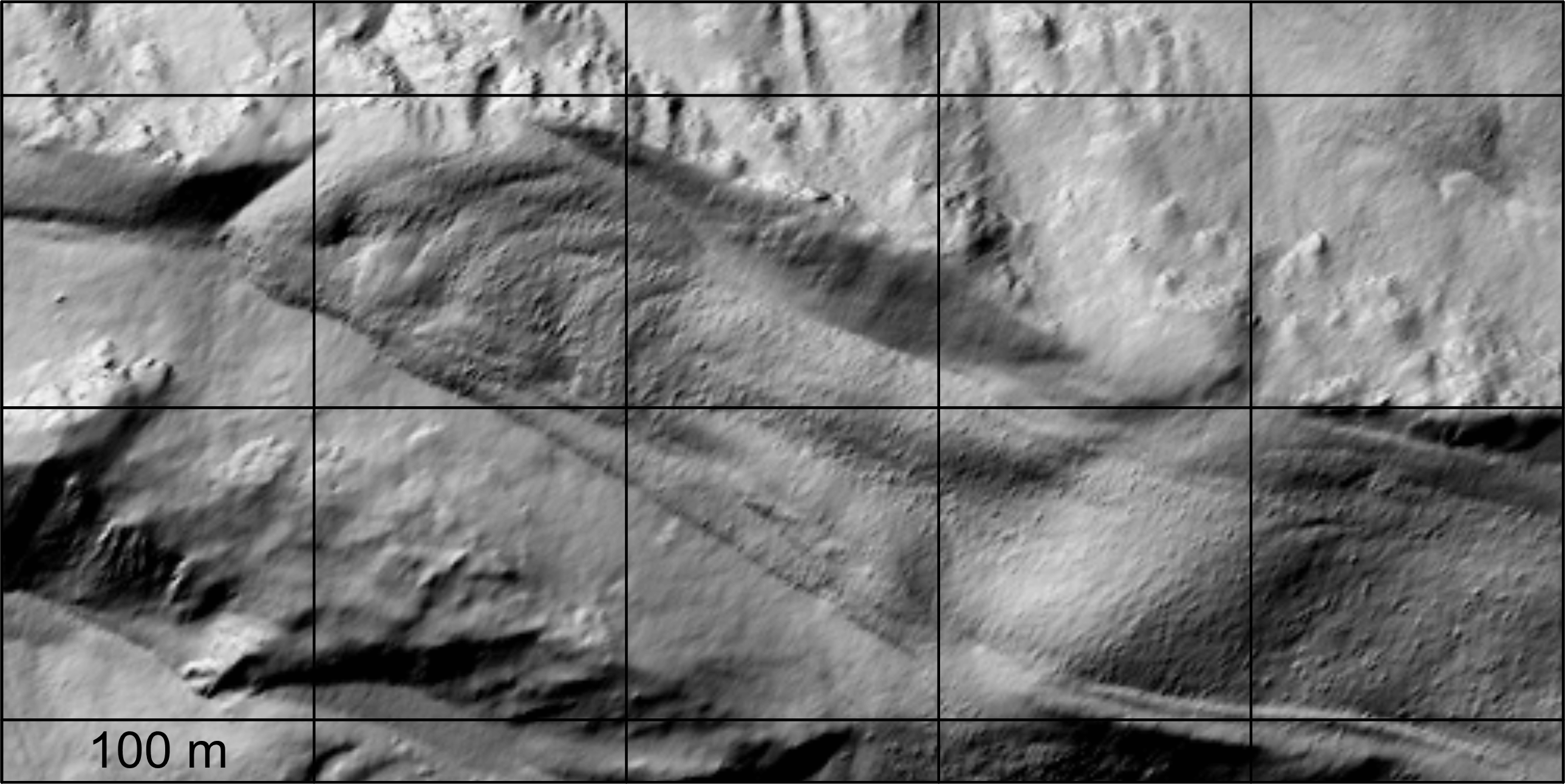

2009-2017
Tschadinhorn rock glacier
Epoch 1: 8.9.2009, digital surface model (DSM), grid spacing 1 m, ALS data © Land Tirol
Epoch 2: 22.8.2017, digital surface model (DSM), grid spacing 1 m, UAV data © UNI Graz/TU Graz
Download animated GIF

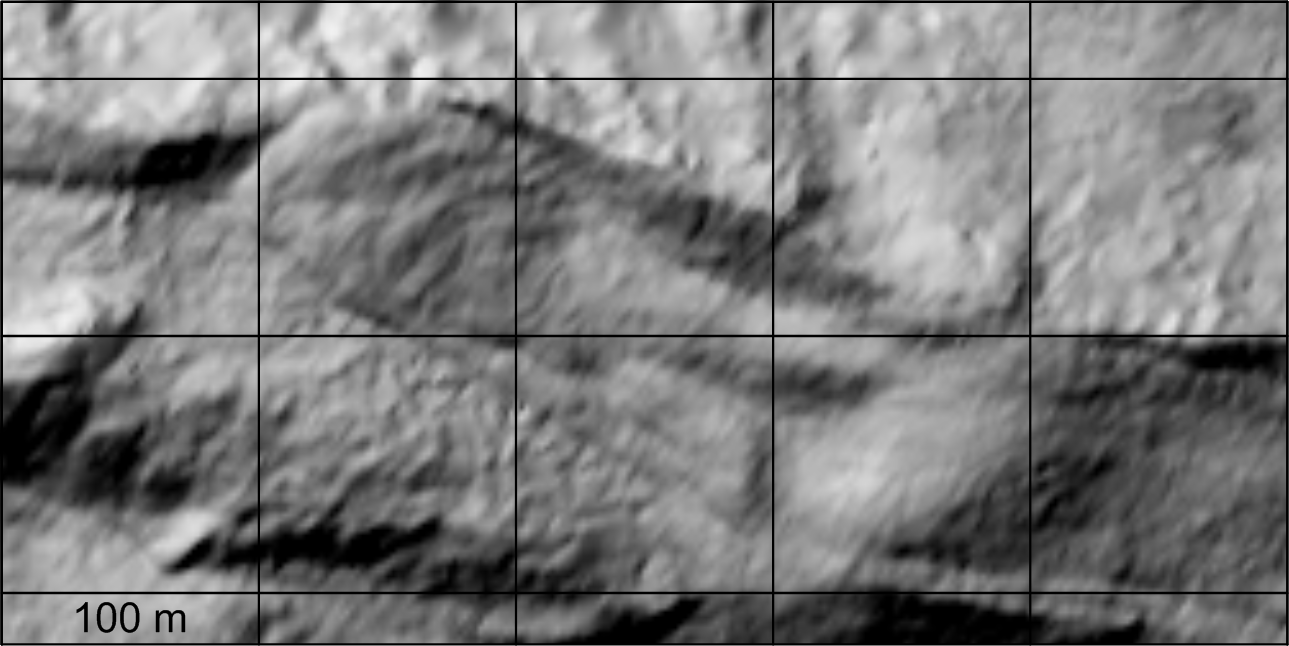

1954-1974-1992-2002-2006-2009-2012-2015-2017
Tschadinhorn
                rock glacier
Digital surface models (DSMs): grid spacing of 2 m
Epochs used: 24.9.1954, 6.9.1974, 18.9.1992, 18.9.2002, 21.9.2006, 8.9.2009 (ALS), 28.8.2012, 28.8.2015, 22.8.2017 (UAV-based survey)
Aerial Surveys (1954, 1974, 1992, 2002, 2006, 2012, 2015, 2017),
ALS data © Land Tirol, aerial photographs © Land Tirol, BEV, UNI Graz/TU Graz
Download animated GIF

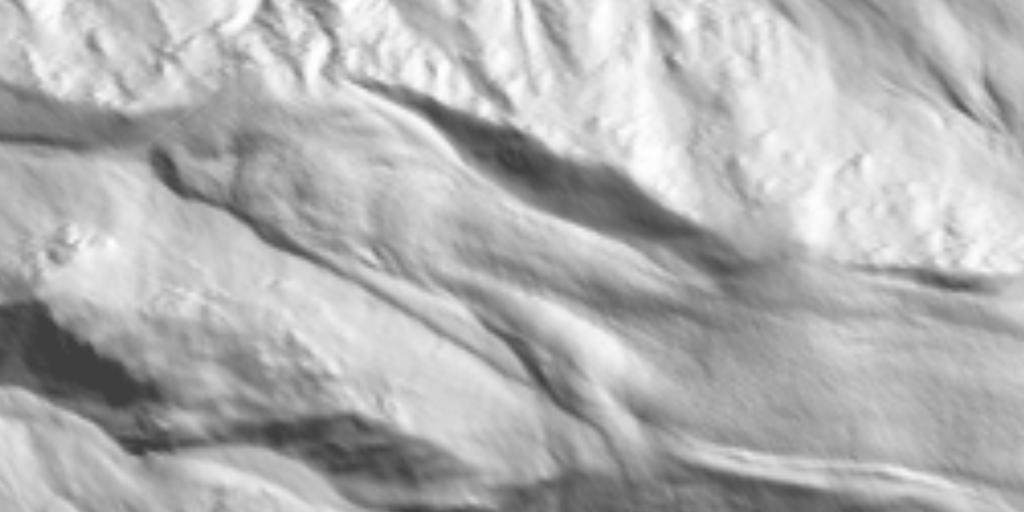

2009-2015
Tschadinhorn rock glacier
Epoch 1: 8.9.2009, digital surface model (DSM), grid spacing 2 m, ALS data © Land Tirol
Epoch 2: 28.8.2015,  digital surface model (DSM), grid spacing 2 m, Ultracam image data © Land Tirol
Shaded reliefs produced with SURFER: lighting from the northeast
Download animated GIF

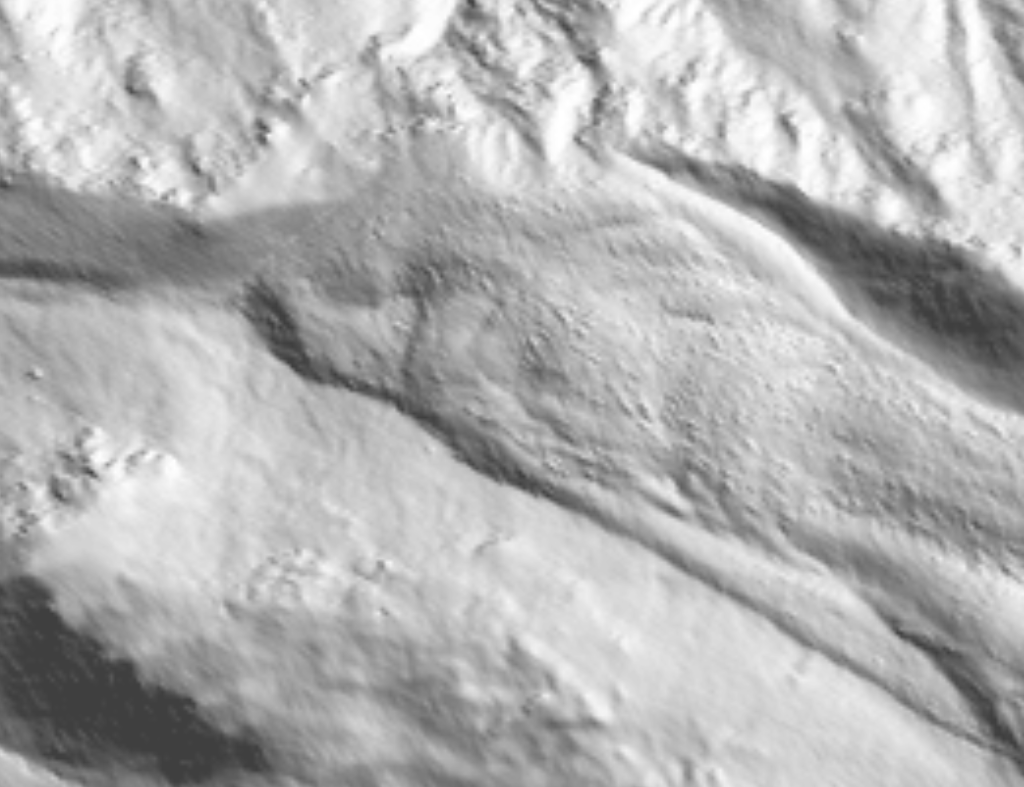

2009-2016
Tschadinhorn rock glacier
Epoch 1: 8.9.2009, digital surface model (DSM), grid spacing 1 m, ALS data © Land Tirol
Epoch 2: 26.7.2016,  digital surface model (DSM), grid spacing 1 m, UAV data © UNI Graz/TU Graz
Shaded reliefs produced with SURFER: lighting from the northeast
Download animated GIF


last update: april 19, 2018
